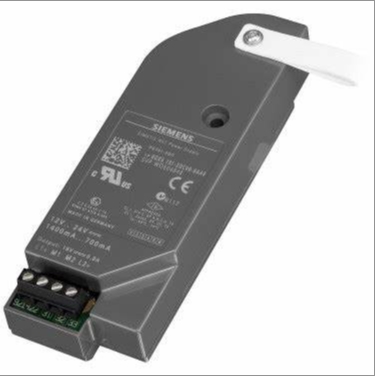

Siemens 6GK5791-2AC00-0AA0 Power Supply PS 791-2AC
Power Supply PS 791-2AC, AC/DC power supply unit, 10 W, IP65 (-40...+70 °C), Input: 90... 240 V AC, Output: 18 V DC, can only be used in connection with SCALANCE W786; scope of delivery: operating instructions, German/English.
Technical specifcations for 6GK5791-2AC00-0AA0
Electrical data / input
supply voltage / at AC: 100 ... 240 V
buffering time / for rated value of the output current / in the event of power failure / minimum: 20 ms; 14,4
line frequency: 45 ... 65 Hz
Electrical data / output
output voltage / at DC / rated value: 18 V
supplied active power / typical: 14.4 W
Electrical data / safety
operating resource protection class: VDE 0805, VDE 0100
Interfaces
type of electrical connection
● at input: 3-pole screw-type terminal for AC power
● at output: 4 pin connector
Design, dimensions and weights
width: 133 mm
height: 45 mm
depth: 30 mm
net weight: 0.209 kg
Ambient conditions
ambient temperature
● during operation: -40 ... +60 °C
protection class IP: IP65
Standards, specifications, approvals
standard
● for safety / from CSA and UL: EN 60950, UL 60950-1
Marine classification association
● French marine classification society (BV): Yes
Standards, specifications, approvals / hazardous environments
certificate of suitability / CCC / for hazardous zone according to GB standard: Yes
● as marking: Ex nA IIC T4 Gc
