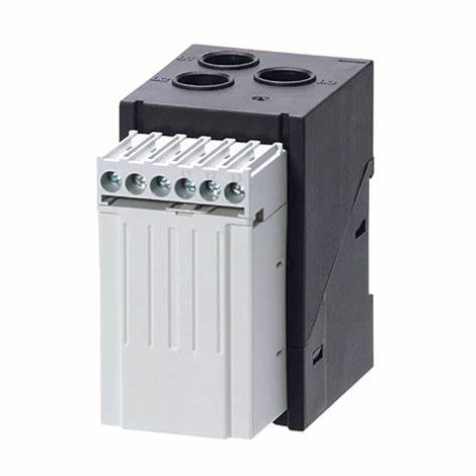

Siemens 3UF7111-1AA00-0 Current/voltage measuring module
Current/voltage measuring module Set current 2.4...25 A, voltage measurement up to 690 V, Overall width 45 mm, straight-through transformer
Technical specifcations for 3UF7111-1AA00-0
General technical data
Product function
● Current measurement: Yes
● voltage measurement: Yes
● active power measurement: Yes
● Power measurement: Yes
● frequency measurement: No
Product component
● input for thermistor connection: No
Insulation voltage
● with degree of pollution 3 rated value: 690 V
Surge voltage resistance rated value: 6 000 V
Protection class IP: IP20
Shock resistance
● acc. to IEC 60068-2-27: 15g / 11 ms
Vibration resistance: 1-6 Hz / 15 mm; 6-500 Hz / 2 g
Electromagnetic compatibility
EMC emitted interference
● acc. to IEC 60947-1: class A
EMI immunity acc. to IEC 60947-1: corresponds to degree of severity 3
Conducted interference
● due to burst acc. to IEC 61000-4-4: 2 kV
● due to conductor-earth surge acc. to IEC 61000-4-5: 2 kV
● due to conductor-conductor surge acc. to IEC 61000-4-5: 1 kV
Field-bound parasitic coupling acc. to IEC 61000-4-3: 10 V/m
Installation/ mounting/ dimensions
Mounting position: any
Mounting type: screw and snap-on mounting
Height: 85 mm
Width: 45 mm
Depth: 66 mm
Required spacing
● top 30: mm
● bottom: 30 mm
● left: 0 mm
● right: 0 mm
Ambient conditions
Installation altitude at height above sea level
● 1 maximum: 2 000 m
● 2 maximum: 3 000 m; No protective separation at 50 °C
● 3 maximum: 4 000 m; No protective separation at 40 °C
Ambient temperature
● during operation: -25 ... +60 °C
● during storage: -40 ... +80 °C
● during transport: -40 ... +80 °C
Relative humidity
● during operation: 5 ... 95 %
Main circuit
Number of poles for main current circuit: 3
Adjustable pick-up value current of the currentdependent overload release: 2.4 ... 25 A
Operating voltage
● at AC
— at 50 Hz rated value: 110 ... 690 V
— at 60 Hz rated value: 110 ... 690 V
Operating frequency rated value: 50 ... 60 Hz
