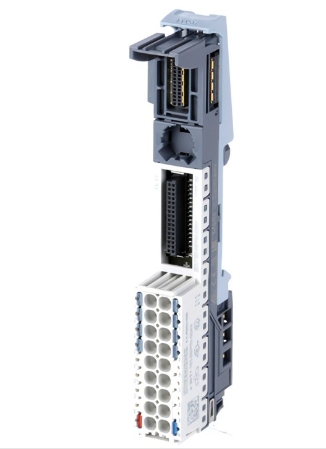

Siemens 6ES7193-6BP00-0DA0 Base Unit

Siemens 6ES7193-6BP00-0DA0 SIMATIC ET 200SP

SIMATIC ET 200SP, BaseUnit BU15-P16+A0+2D, BU type A0, push-in terminals,without aux. terminals, new load group, WxH: 15x 117 mm

Technical specifcations for 6ES7193-6BP00-0DA0

General information

Product type designation: BU type A0

HW functional status: From FS06

Supply voltage

Rated value (DC): 24 V

external protection for power supply lines: Yes; 24 V DC/10 A miniature circuit breaker with type B or C tripping characteristic

Mains filter

● integrated: Yes

Current carrying capacity

For P1 and P2 bus, max.: 10 A

For process terminals, max.: 2 A

Hardware configuration

Formation of potential groups

● New potential group: Yes

● Potential group continued from the left: No

Slots

● Number of slots: 1; Type A0

Potential separation

between the potential groups: Yes

Isolation

Isolation tested with: 707 V DC (type test)

Ambient conditions

Ambient temperature during operation

● horizontal installation, min:  -30 °C

● horizontal installation, max: 60 °C

● vertical installation, min: -30 °C

● vertical installation, max: 50 °C

Altitude during operation relating to sea level

● Installation altitude above sea level, max: 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Accessories

Color coding labels

● for process terminals: CC00 to CC09

● for AUX terminals: does not exist

● for add-on terminals: does not exist

connection method

Terminals

● Terminal type: Push-in terminal

● system-integrated shield connection: Yes; Optional

● Conductor cross-section, min: 0.14 mm²; AWG 26

● Conductor cross-section, max: 2.5 mm²; AWG 14

● Number of process terminals to I/O module: 16

● Number of terminals to AUX bus: 0

● Number of add-on terminals: 0

● Number of terminals with connection to P1 and P2 bus: 2

Dimensions

Width: 15 mm

Height: 117 mm

Depth: 35 mm

Weights

Weight, approx: 40 g
