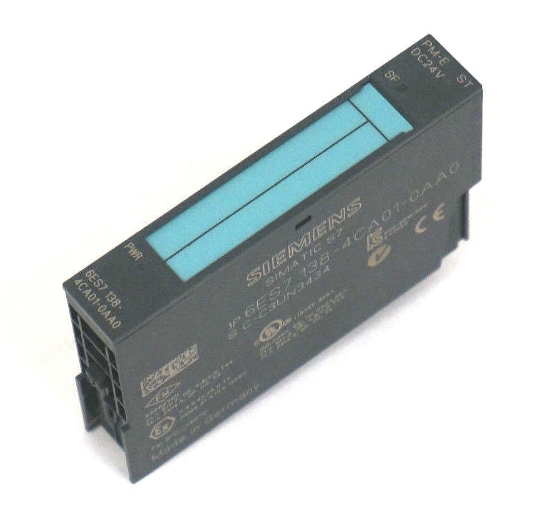

Siemens 6ES7138-4CA01-0AA0 PM-E 24 VDC SIMATIC DP ET200S
SIMATIC DP, PM-E power modules for ET 200S; 24 V DC with diagnostics.
Technical specifcations for 6ES7138-4CA01-0AA0
Product Line: SIMATIC DP, PM-E
Output Source: 24 V DC with diagnostics
Input Source: 24 V DC
Dimensions (WxHxH): 15 x 81 x 52 mm
Weight: 35 g
Supply voltage
Load voltage L+
● Rated value (DC): 24 V
● Short-circuit protection: Full; external (e.g. automatic circuit breaker), tripping characteristic C
● Reverse polarity protection: Yes
Input current
from load voltage L+ (without load), max: 4 mA
Current carrying capacity
up to 60 °C, max: 10 A
Power loss
Power loss, typ: 0.1 W
Interrupts/diagnostics/status information
Diagnoses
● Missing load voltage: Yes
● Rated load voltage PWR (green): Yes
● Group error SF (red): Yes
Parameters
Remark: 3 bytes
missing load voltage: Disable / enable
Potential separation
primary/secondary: Yes; between rated load voltage and backplane bus, between power modules
Isolation
Isolation tested with: 500 V DC
Dimensions
Width: 15 mm
Height: 81 mm
Depth: 52 mm
Weights
Weight, approx: 35 g
