Siemens 6ES7134-6GF00-0AA1 SIMATIC S7-200 CN, Digital I/O EM 223
SIMATIC S7-200 CN, Digital I/O EM 223, only for S7-22X CPU, 16 DI 24 V DC, Sink/Source, 16 DO relay, 2 A/channel this S7-200 CN product only has CE approval

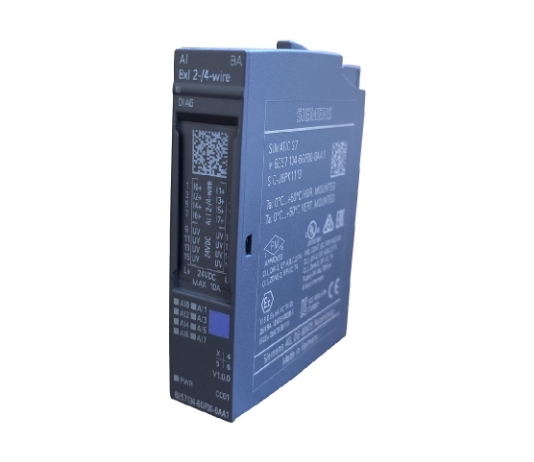

Technical specifcations for 6ES7134-6GF00-0AA1
Product Line: SIMATIC ET 200SP, AI 8xI 2-/4-wire BA
Number of analog inputs: AI 8xI 2-/4-wire
Power Supply: 24 V DC (19.2 – 28.8 V DC)
Dimensions (WxHxH): 15 x 73 x 58 mm
Weight: 31 g
● FW update possible: Yes
usable BaseUnits: BU type A0, A1
Color code for module-specific color identification plate: CC01
Product function
● I&M data: Yes; I&M0 to I&M3
● Isochronous mode: Full
● Measuring range scalable: Full
CiR – Configuration in RUN
Reparameterization possible in RUN: Yes
Calibration possible in RUN: Full
Supply voltage
Rated value (DC): 24 V
permissible range, lower limit (DC) :19.2 V
permissible range, upper limit (DC): 28.8 V
Reverse polarity protection: Yes
Input current
Current consumption, max: 25 mA; without sensor supply
24 V encoder supply
● 24 V: Yes
● Short-circuit protection: Yes
● Output current, max: 0.7 A; total current of all encoders/channels
Power loss
Power loss, typ: 0.7 W; Without encoder supply voltage
Address area
● Address space per module, max.: 16 bytes
Hardware configuration
Automatic encoding: Yes
● Mechanical coding element: Yes
● Type of mechanical coding element: Type A
Selection of BaseUnit for connection variants
● 1-wire connection: BU type A0, A1
● 2-wire connection: BU type A0, A1
● 4-wire connection: BU type A0, A1 + potential distributor module
Analog inputs
Number of analog inputs: 8; Single-ended
● For current measurement: 8
● For voltage measurement
permissible input current for current input (destruction limit), max: 50 mA
Cycle time (all channels), min: 1 ms; per channel
Input ranges (rated values), currents
● 0 to 20 mA: Yes
— Input resistance (0 to 20 mA): 100 Ω; 15 bit
● -20 mA to +20 mA: Yes
— Input resistance (-20 mA to +20 mA): 100 Ω; 16 bit incl. sign
● 4 mA to 20 mA: Yes
— Input resistance (4 mA to 20 mA): 100 Ω; 15 bit
Cable length
● shielded, max: 200 m
Ambient conditions
Ambient temperature during operation
● horizontal installation, min: -30 °C; < 0 °C as of FS04
● horizontal installation, max: 60 °C
● vertical installation, min: -30 °C; < 0 °C as of FS04
● vertical installation, max: 50 °C
Altitude during operation relating to sea level
● Installation altitude above sea level, max: 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual
Dimensions
Width: 15 mm
Height: 73 mm
Depth: 58 mm
Weights
Weight, approx: 31 g
