Siemens 6EP3436-8SB00-0AY0 Power supplies

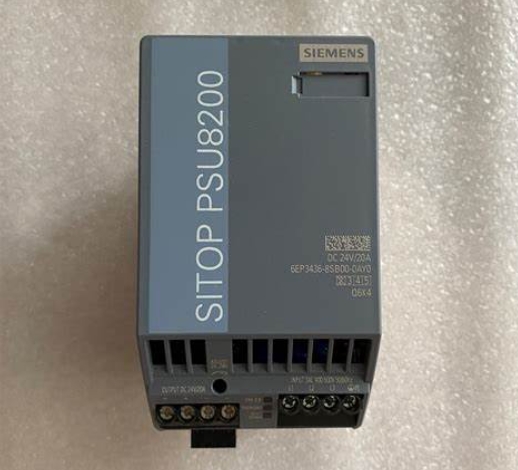

Siemens 6EP3436-8SB00-0AY0 24VDC/20A (400-500VAC) SITOP PSU8200 Power Supply

  • Item no.:

    6EP3436-8SB00-0AY0
  • Payment:

    T/T, Western Union
  • Market price:

    $66
  • Price:

    $99
  • Product origin:

    GERMANY
  • Color:

    Original and Brand New
  • Goods stock:

    30
  • Lead Time:

    In stock/1-3days

Siemens 6EP3436-8SB00-0AY0 24VDC/20A (400-500VAC) SITOP PSU8200 Power Supply



SITOP PSU8200 24 V/20 A Stabilized power supply input: 3 AC 400-500 V output: 24 V DC/20 A.



Technical specifcations for 6EP3436-8SB00-0AY0

Product Line: SITOP PSU8200

Input Source: 3 AC 400-500 V

Output Source: 24 V DC/20 A

Dimensions (WxHxH): 70 x 125 x 125 mm

Weight: 1 200 g

Product: SITOP PSU8200

Power supply, type: 24 V/20 A



Input

Input 3-phase AC

Rated voltage value Vin rated: 400 … 500 V

Voltage range AC: 320 … 575 V

Wide-range input: Yes

Mains buffering: at Vin = 400 V

Mains buffering at Iout rated, min: 15 ms; at Vin = 400 V

Rated line frequency 1: 50 Hz

Rated line frequency 2: 60 Hz

Rated line range: 47 … 63 Hz

input current

● at rated input voltage 400 V: 1.2 A

● at rated input voltage 500 V: 1 A

Switch-on current limiting (+25 °C), max: 16 A

I²t, max: 0.8 A²·s

Built-in incoming fuse: none



Output

Output: Controlled, isolated DC voltage

Rated voltage Vout DC: 24 V

 ● output voltage at output 1 at DC rated value: 24 V

Total tolerance, static ±: 3 %

Static mains compensation, approx: 0.1 %

Static load balancing, approx: 0.2 %

Residual ripple peak-peak, max: 100 mV

Spikes peak-peak, max. (bandwidth: 20 MHz): 200 mV

Adjustment range: 24 … 28.8 V

Product Function Output Voltage Adjustable: Yes

Output voltage setting: via potentiometer; max. 480 W

Display status: Green LED for 24 V OK

Signaling: Relay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK"

On/off behavior: No overshoot of Vout (soft start)

Startup delay, max: 2.5 s

voltage increase time of the output voltage maximum: 500 ms

Rated current value Iout rated: 20 A

Current range: 0 … 20 A

● Note: +60 ... +70 °C: Derating 2%/K

Supplied Active Power Typical: 480 W

● at short-circuit during typical operation: 60 A

● at short-circuit during operation: 25 ms

● on short-circuiting during the start-up typical: 22 A

Parallel switching for enhanced performance: Yes; Switchable Characteristic

Numbers of parallel switchable units for enhanced performance: 2



Efficiency

Efficiency at Vout rated, Iout rated, approx: 94 %

Power loss at Vout rated, Iout rated, approx: 31 W



Closed-loop control

Dynamic mains compensation (Vin rated ±15 %), max: 0.1 %

Dynamic load smoothing (Iout: 50/100/50 %), Uout ± typ: 1 %

Load step setting time 50 to 100%, typ: 0.2 ms

Load step setting time 100 to 50%, typ: 0.2 ms

Dynamic load smoothing (Iout: 10/90/10 %), Uout ± typ: 2 %

Load step setting time 10 to 90%, typ: 0.2 ms

Load step setting time 90 to 10%, typ: 0.2 ms

setting time maximum: 10 ms



Protection and monitoring

Output overvoltage protection: < 32 V

Current limitation, typ: 22 A

property of the output short-circuit proof: Yes

Short-circuit protection: Alternatively, constant current characteristic approx. 22 A or latching shutdown

● typical: 22 A

overcurrent overload capability in normal operation: overload capability 150 % Iout rated up to 5 s/min

Overload/short-circuit indicator: LED yellow for "overload", LED red for "latching shutdown"



Safety

Primary/secondary isolation: Yes

Galvanic Isolation: Safety extra low output voltage Vout according to EN 60950-1

Protection class: Class I

● maximum: 3.5 mA

● typical: 0.9 mA

Degree of protection (EN 60529): IP20



Approvals

CE mark: Yes

certificate of suitability NEC Class 2: Full

CB approval: Yes

certificate of suitability EAC approval: Yes

Marine approval: ABS, DNV GL



Environmental conditions

● during operation: -25 ... +70 °C

— Note: With natural convection; startup tested starting from -40 °C nominal voltage

● during transport: -40 ... +85 °C

● during storage: -40 ... +85 °C

Humidity class according to EN 60721: Climate class 3K3, 5 ... 95% no condensation



Mechanics

Connection technology: Screw-type terminals

● Supply input: L1, L2, L3, PE: 1 screw terminal each for 0.2 ... 4 mm² single-core/finely stranded

● Output: +, -: 2 screw terminals each for 0.2 ... 4 mm²

● Auxiliary: 13, 14 (alarm signal): 1 screw terminal each for 0.14 ... 1.5 mm²; 15, 16 (Remote): 1 screw terminal each for 0.14 ... 1.5 mm²

width of the enclosure: 70 mm

height of the enclosure: 125 mm

depth of the enclosure: 125 mm

required spacing

● TOP: 50 mm

● bottom: 50 mm

● left: 0 mm

● right: 0 mm

Weight, approx: 1.2 kg

Product feature of the enclosure housing can be lined up: Yes

Installation: Snaps onto DIN rail EN 60715 35×7.5/15

electrical accessories: Buffer module

mechanical accessories: Device identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20

MTBF at 40 °C: 590 573 h

other information: Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
