Siemens 6EP3333-8SB00-0AY0 Power Supply

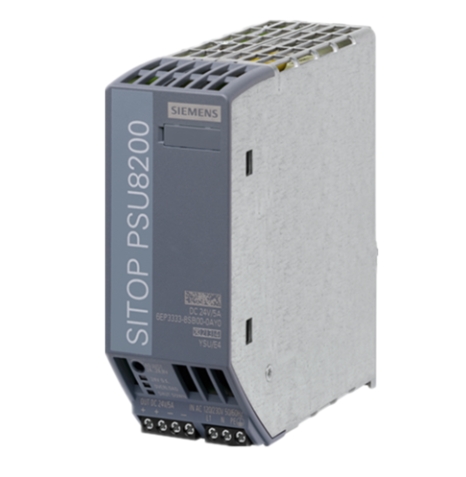

Siemens 6EP3333-8SB00-0AY0 24VDC/5A (120/230VAC) SITOP PSU8200 Power Supply

SITOP PSU8200 24 V/5 A stabilized power supply input: 120/230 V AC output: 24 V DC/5 A

Technical specifcations for 6EP3333-8SB00-0AY0

Product Line: SITOP PSU8200

Input Source: 120/230 V AC

Output Source: 24 V DC/5 A

Dimensions (WxHxH): 45 x 125 x 125 mm

Weight: 800 g

Product: SITOP PSU8200

Power supply, type: 24 V/5 A

Input

Input: 1-phase AC

Rated voltage value Vin rated

Voltage range AC

● Note: Automatic range selection

supply voltage

● 1 at AC rated value: 120 V

● 2 at AC rated value: 230 V

● at DC

Input voltage

● 1 at AC: 85 … 132 V

● 2 at AC: 170 … 264 V

● at DC

Wide-range input: Full

Mains buffering: at Vin = 120/230 V

Mains buffering at Iout rated, min: 35 ms; at Vin = 120/230 V

Rated line frequency 1: 50 Hz

Rated line frequency 2: 60 Hz

Rated line range: 47 … 63 Hz

input current

● at rated input voltage 120 V: 2.1 A

● at rated input voltage 230 V: 1.2 A

Switch-on current limiting (+25 °C), max: 10 A

I²t, max: 0.2 A²·s

Built-in incoming fuse: T 3.15 A (not accessible)

Output

Output: Controlled, isolated DC voltage

Rated voltage Vout DC: 24 V

 ● output voltage at output 1 at DC rated value: 24 V

Total tolerance, static ±: 3 %

Static mains compensation, approx: 0.1 %

Static load balancing, approx: 0.2 %

Residual ripple peak-peak, max: 50 mV

Spikes peak-peak, max. (bandwidth: 20 MHz): 200 mV

Adjustment range: 24 … 28.8 V

Product Function Output Voltage Adjustable: Yes

Output voltage setting: via potentiometer; max. 120 W

Display status: Green LED for 24 V OK

Signaling: Relay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK"

On/off behavior: Overshoot of Vout approx. 3 %

Startup delay, max: 1.5 s

Voltage rise, typ: 30 ms

Rated current value Iout rated: 5 A

Current range: 0 … 5 A

● Note: As of Ua>24 V: 4% [Ia]/V [Ua]; at Ue<100 V/<200 V: 80% Ia rated

Supplied Active Power Typical: 120 W

● at short-circuit during typical operation: 15 A

● at short-circuit during operation: 25 ms

● on short-circuiting during the start-up typical: 6 A

Parallel switching for enhanced performance: Yes; Switchable Characteristic

Numbers of parallel switchable units for enhanced performance: 2

Efficiency

Efficiency at Vout rated, Iout rated, approx: 93 %

Power loss at Vout rated, Iout rated, approx: 9 W

power loss [W] during no-load operation maximum: 1.5 W

Closed-loop control

Dynamic mains compensation (Vin rated ±15 %), max: 0.1 %

Dynamic load smoothing (Iout: 50/100/50 %), Uout ± typ: 2 %

Load step setting time 50 to 100%, typ: 0.25 ms

Load step setting time 100 to 50%, typ: 0.5 ms

Dynamic load smoothing (Iout: 10/90/10 %), Uout ± typ: 2 %

Load step setting time 10 to 90%, typ: 0.25 ms

Load step setting time 90 to 10%, typ: 0.5 ms

setting time maximum: 1 ms

Protection and monitoring

Output overvoltage protection: < 33 V

Current limitation, typ: 6 A

property of the output short-circuit proof: Yes

Short-circuit protection: Alternatively, constant current characteristic approx. 6 A or latching shutdown

enduring short circuit current RMS value

● typical: 6 A

overcurrent overload capability in normal operation: overload capability 150 % Iout rated up to 5 s/min

Overload/short-circuit indicator: LED yellow for "overload", LED red for "latching shutdown"

Safety

Primary/secondary isolation: Yes

Galvanic Isolation: Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178

Protection class: Class I

● maximum: 3.5 mA

● typical: 1 mA

Degree of protection (EN 60529): IP20

Approvals

CE mark: Yes

UL/cUL (CSA) approval: cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cCSAus (CSA C22.2 No. 60950-1, UL 60950-1)

Explosion protection: IECEx Ex nA nC IIC T4 Gc; ATEX (EX) II 3G Ex nA nC IIC T4 Gc; cCSAus (CSA C22.2 No. 213, ANSI/ISA-12.12.01) Class I, Div. 2, Group ABCD, T3

certificate of suitability NEC Class 2: Full

CB approval: Yes

certificate of suitability EAC approval: Yes

Marine approval: ABS, DNV GL

Environmental conditions

● during operation: -25 ... +70 °C

— Note: With natural convection; startup tested starting from -40 °C nominal voltage

● during transport: -40 ... +85 °C

● during storage: -40 ... +85 °C

Humidity class according to EN 60721: Climate class 3K3, 5 ... 95% no condensation

Mechanics

Connection technology: Screw-type terminals

● Supply input: L, N, PE: 1 screw terminal each for 0.2 ... 2.5 mm² single-core/finely stranded

● Output: +, -: 2 screw terminals each for 0.2 ... 2.5 mm²

● Auxiliary: 13, 14 (alarm signal): 1 screw terminal each for 0.14 ... 1.5 mm²; 15, 16 (Remote): 1 screw terminal each for 0.14 ... 1.5 mm²

width of the enclosure: 45 mm

height of the enclosure: 125 mm

depth of the enclosure: 125 mm

required spacing

● TOP: 50 mm

● bottom: 50 mm

● left: 0 mm

● right: 0 mm

Weight, approx: 0.8 kg

Product feature of the enclosure housing can be lined up: Yes

Installation: Snaps onto DIN rail EN 60715 35×7.5/15

electrical accessories: Buffer module

mechanical accessories: Device identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20

MTBF at 40 °C: 1 421 519 h

other information: Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
