Siemens 6EP1436-2BA00 Power supplies

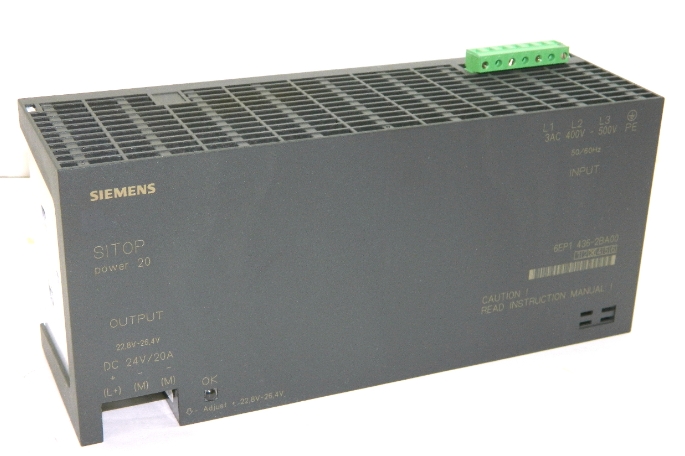

Siemens 6EP1436-2BA00 Sitop Power 20 Power Supply 24Vdc 20 Amp 400-500Vac 3 Ph

SITOP power 20 A, Stabilized power supply input: 3 AC 400-500 V output: 24 V DC/20 A

Technical specifcations for 6EP1436-2BA00

Input

Input: 3-phase AC

Rated voltage value Vin rated: 400 ... 500 V

Voltage range AC: 360 ... 550 V

● Note: 340 ... 360 V for max. 2 s or at max. 0.9 x Iout rated

Wide-range input: Yes

Overvoltage resistance: 2.3 × Vin rated, 1.3 ms

Mains buffering at Iout rated, min: 3 ms; at Vin = 360 V

Rated line frequency: 50 ... 60 Hz

Rated line range: 47 ... 63 Hz

Input current

● at rated input voltage 400 V: 1.2 A

Switch-on current limiting (+25 °C), max: 25 A

I²t, max: 1 A²·s

Built-in incoming fuse: none

Output

Output: Controlled, isolated DC voltage

Rated voltage Vout DC: 24 V

Total tolerance, static ±: 3 %

Residual ripple peak-peak, max: 150 mV

Residual ripple peak-peak, typ: 60 mV

Spikes peak-peak, max. (bandwidth: 20 MHz): 240 mV

Spikes peak-peak, typ. (bandwidth: 20 MHz): 120 mV

Adjustment range: 22.8 ... 26.4 V

Product function Output voltage adjustable: Yes

Output voltage setting: via potentiometer; only permissible at ambient temperatur 0 °C to +45 °C

Status display: Green LED for 24 V OK

On/off behavior： No overshoot of Vout (soft start)

Startup delay, max： 3 s

Voltage rise, typ： 40 ms

Rated current value Iout rated： 20 A

Current range： 0 ... 20 A

Active power supplied typical: 480 W

Constant overload current

● on short-circuiting during the start-up typical: 30 A

● at short-circuit during operation typical: 30 A

Parallel switching for enhanced performance: Yes; only permissable at ambient temperature 0 °C to 45 °C

Numbers of parallel switchable units for enhanced performance: 2

Efficiency

Efficiency at Vout rated, Iout rated, approx: 89 %

Power loss at Vout rated, Iout rated, approx: 59 W

Closed-loop control

Dynamic mains compensation (Vin rated ±15 %), max: 1 %

Dynamic load smoothing (Iout: 50/100/50 %), Uout ± typ: 2 %

setting time maximum: 2 ms

Protection and monitoring

Output overvoltage protection: Yes, according to EN 60950

Current limitation: 21 ... 26 A

Property of the output Short-circuit proof: Yes

Short-circuit protection: Constant current characteristic

Enduring short circuit current RMS value

● maximum: 30 A

Safety

Primary/secondary isolation: Yes

Galvanic Isolation: Safety extra low output voltage Vout according to EN 60950-1

Protection class: Class I

● maximum: 3.5 mA

● typical: 0.35 mA

Degree of protection (EN 60529): IP20

Operating data

Ambient temperature

● during operation: 0 ... 55 °C

— Note: with natural convection

● during transport: -25 ... +85 °C

● during storage: -25 ... +85 °C

Humidity class according to EN 60721: Climate class 3K3, no condensation

Mechanics

Connection technology: screw-type terminals

Connections

● Supply input: L1, L2, L3, PE: 1 screw terminal each for 0.5 ... 2.5 mm² singlecore/finely stranded

● Output: L+: 1 screw terminal for 0.33 ... 10 mm²; M: 2 screw terminals for 0.33 ... 10 mm²

● Auxiliary -

Width of the enclosure: 280 mm

Height of the enclosure: 125 mm

Depth of the enclosure: 92 mm

Weight, approx: 2 kg

Product property of the enclosure housing for sideby-side mounting: No

Installation: Snaps onto DIN rail EN 60715 35x7.5/15
