Schneider TSXDSY08T22 Discrete Output Module

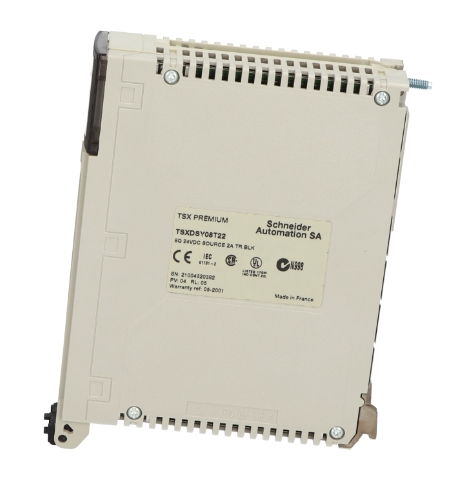

Schneider TSXDSY08T22 MODICON PREMIUM DISCRETE OUTPUT MODULE - 8 O SOLID STATE

The Schneider TSXDSY08T22 is a discrete output module belonging to the Modicon Premium automation platform by Schneider Electric. It serves the purpose of controlling external devices based on signals received from a programmable logic controller (PLC).

Technical specifcations for TSXDSY08T22

Main

Range of Product: Modicon Premium Automation platform

Product or Component Type: Discrete output module

Discrete output number: 8

Discrete output type: Solid state protected

Discrete output voltage: 24 V DC positive EN/IEC 61131-2 19...30 V

Discrete output current: 2 A

Complementary

Current per channel: 2.5 A

Maximum current per module: 14 A

Maximum leakage current: 1 mA at state 0

[Ures] residual voltage: 0.5 V

Response time: 0.2 ms

Switching frequency: 0.5/LI² Hz

Output overvoltage protection: By transil diode

Reverse polarity protection: Reverse mounted diode

Output overload protection: Electronic tripping on reactivation

Short-circuit protection: Electronic tripping on reactivation

Preactuator voltage detection threshold: 16 V

Minimum load impedance: 12 W

isalotion resistance: > 10 MOhm 500 V

Power dissipation: 1.3 W + 0.2 W x No of outputs x current per module)

Marking: CE

Electrical connection: Screw terminal block

Current consumption55 mA 5 V DC

Module format: Standard

Net Weight: 0.90 lb(US) (0.41 kg)

Environment

Dielectric strength: 1500 V 50/60 Hz 60 s

Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)

Ambient Air Temperature for Storage: -13…158 °F (-25…70 °C)

Operating altitude: 0...6561.68 ft (0...2000 m)

protective treatment: TC

IP Degree of Protection: IP20

Pollution degree: 2

Relative Humidity

10…95 % without condensation for operation

5…95 % without condensation for storage
