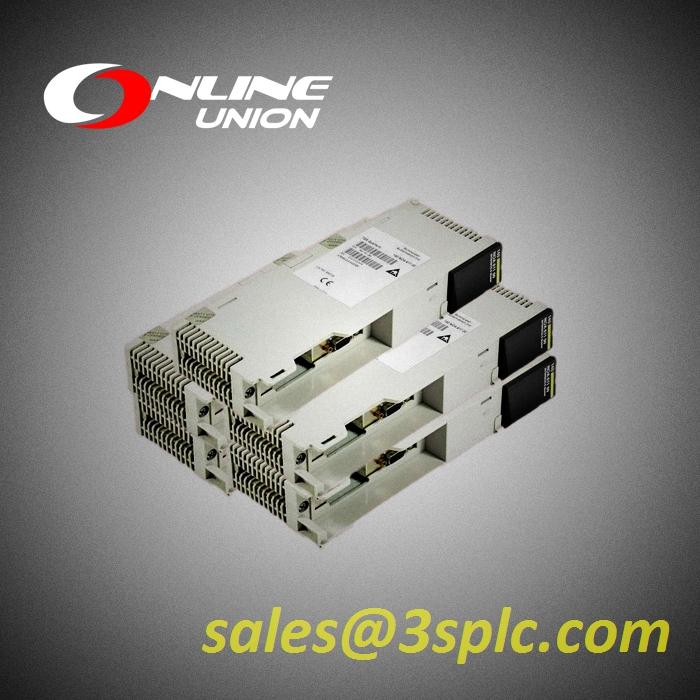

Schneider TSXSTZ10 AS-Interface Master Module

Schneider TSXSTZ10 COMMUNICATION CARD MODBUS PLUS PCMCIA

The Schneider TSXSAZ10 is an AS-Interface master module designed for the Modicon Premium series automation platform. AS-Interface (Actuator Sensor Interface) is a communication protocol used for connecting sensors and actuators to a controller in a simple and cost-effective way.

Technical specifcations for TSXSTZ10

Overview

The TSXSAZ10 acts as an interface between the Modicon Premium controller and AS-Interface slave devices (sensors and actuators) on a single cable.

It simplifies wiring and reduces installation time compared to traditional point-to-point wiring methods.

Features

Supports AS-Interface V1: Connects with AS-Interface devices following Version 1 of the protocol.

4 Digital Inputs and 4 Digital Outputs: Provides basic digital I/O connectivity for sensors and actuators.

Standard Addressing: Uses standard addressing scheme for straightforward configuration of slave devices on the AS-Interface network.

Connects up to 31 Slave Devices: Allows communication with a maximum of 31 sensors and actuators on the AS-Interface cable.

Power Supply via Host Platform: Receives power from the Modicon Premium controller, eliminating the need for a separate power supply for the module itself.

IP20 Rated: Provides protection against solid objects larger than 12.5mm but is not water resistant. Suitable for use in typical industrial control cabinets.

Applications

Industrial Automation Applications: The TSXSAZ10 is ideal for various industrial automation tasks where simple digital I/O communication is required. Some

examples include

Machine control

Conveyor systems

Material handling

Building automatio
