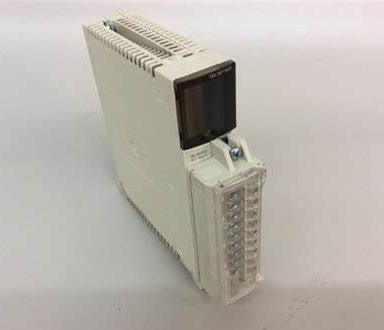

Schneider TSXDEY16D3 Discrete Input Module

Schneider TSXDEY16D3 DISCRETE INPUT MODULE MODICON PREMIUM - 16 I 48 V DC

The Schneider TSXDEY16D3 is a discrete input module belonging to the Modicon Premium automation platform by Schneider Electric. It is no longer actively produced by the company, but you might still find it available from resellers.

Technical specifcations for TSXDEY16D3

Main

Range of Product: Modicon Premium Automation platform

Product or Component Type: Discrete input module

Discrete input number: 16 current sink isolated EN/IEC 61131-2 type 2

Discrete input voltage: 48 V DC positive

Sensor power supply: 38…60 V

Input compatibility: With 2-wire/3-wire proximity sensors EN/IEC 60947-5-2

Discrete input current: 7 mA

Complementary

Voltage state 1 guaranteed: >= 30 V

Current state 1 guaranteed: >= 6.5 mA

Voltage state 0 guaranteed: <= 10 V

Current state 0 guaranteed: <= 2 mA

Input impedance: 7000 Ohm at state 1

Response Time: <= 7 ms; 4 ms

isalotion resistance: < 10 MOhm 500 V DC

Power dissipation: 1 W + 0.3 W x No of channels used)

Electrical Connection: Screw terminal

Marking: CE

Current consumption: 135 mA 24 V DC; 80 mA 5 V DC

Module formatStandard

Net Weight: 0.7 lb(US) (0.3 kg)

Environment

Dielectric strength: 1500 V AC 50/60 Hz

Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)

Ambient Air Temperature for Storage: -13…158 °F (-25…70 °C)

Operating altitude: 0...6561.68 ft (0...2000 m)

protective treatment: TC

IP Degree of Protection: IP20

Pollution degree: 2

Relative Humidity

10…95 % without condensation for operation

5…95 % without condensation for storage
