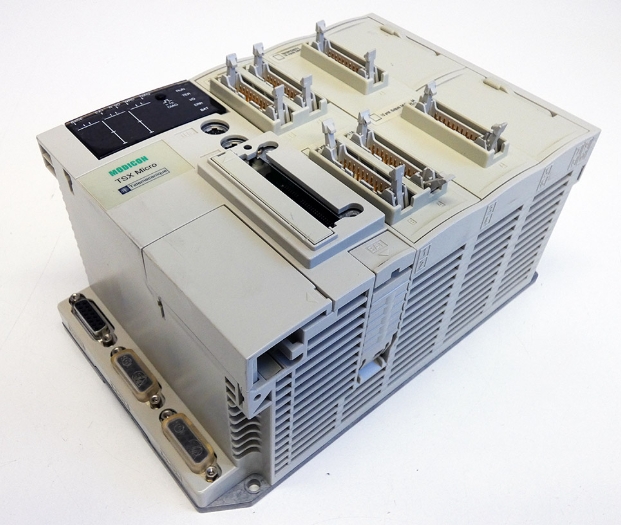

Schneider TSX3722100 Programmable Logic Controller (PLC)

Schneider TSX3722100 CPU MODULE 24VDC

The Schneider TSX3722100 is a programmable logic controller (PLC), specifically a Modicon TSX Micro 37 22 model, manufactured by Schneider Electric. It's designed for small to medium-sized industrial automation applications.

Technical specifcations for TSX3722100

Specifications

Number of slots: 4 (2 full size, 4 half size)

Power supply: 24 VDC (19.2 to 30 VDC)

Current consumption: 1.8 A

Discrete input: 32 at 24 VDC

Discrete output: 24 at 24 VDC, 2 A per output

Analog input: 8 analog inputs, 10 bits resolution, +/- 10 V

Analog output: 4 analog outputs, 12 bits resolution, +/- 10 V

Communication ports:

1 serial link Uni-Telway 19.2 kbit/s

1 Ethernet port (10BaseT)

Memory:

Internal RAM: 32 Kwords data

Flash: 48 Kwords data

Execution time:

0.25 µs for Boolean instruction without PCMCIA card

4.81 µs for arithmetic REAL floating instruction without PCMCIA card

Operating temperature: 0°C to 60°C

Dimensions:

Width: 282.7 mm

Height: 151 mm

Depth: 122 mm

Weight: 2.3 kg

Features

Compact design

Screw terminal connections

Integrated logic, communication, and analog I/O functionalities

Supports various programming languages like Ladder and Function Block Diagram (FBD)

Expandable with additional I/O modules for increased capabilities

Real-time clock

Applications

Industrial automation and control for various processes:

Material handling

Packaging

Building automation

Lighting control

HVAC systems

Data acquisition and monitoring

Machine control with analog inputs and outputs
