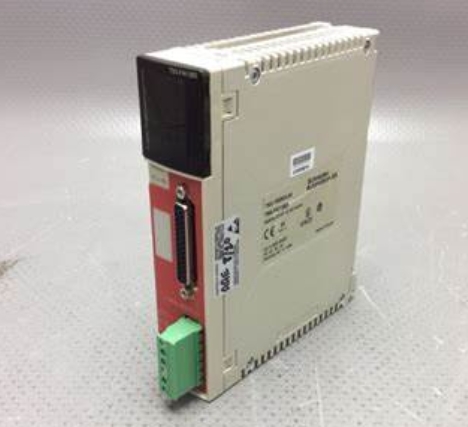

Schneider TSXPAY282 PREVENTA SAFETY MODULE - 24 V DC - STANDARD FORMAT - < 5 W
The Schneider TSXPAY282 is a Preventa safety module, part of Schneider Electric's safety offering. It's designed to enhance safety in various industrial applications by providing features like:
Emergency stop function: Allows for immediate machine shutdown in case of an emergency situation.
Two-hand control: Requires the use of both hands to operate a machine, preventing accidental activation.
Safety gates and interlocks: Monitors the status of safety gates and interlocks, stopping the machine if they are opened unexpectedly.
Technical specifcations for TSXPAY282
Main
Range of Product: Modicon Premium Automation platform
Product or Component Type: Preventa safety module
Complementary
[Us] rated supply voltage: 24 V DC
Supply voltage limits: 19.2…30 V
Activation threshold: < 20 V
Short-circuit protection
1 A gG external IEC 947-5-1 for F1 on power supply
4 A gG external IEC 947-5-1 for F2 on safety relay outputs
Discrete input number
1 double or single contact selection input IEC 1131 Type 1
1 feedback loop input IEC 1131 Type 1
1 reset PB input IEC 1131 Type 1
1 reset PB monitoring input IEC 1131 Type 1
12 emergency stop or limit switch discrete inputs IEC 1131 Type 1
Isolation voltage: 4000 V III 2
Discrete input logic: Positive
Inrush current: 0.5 A
Isolation between input and earth: 500 Vrms 50/60 Hz 60 s
Maximum power dissipation in W: 5 W
Safety outputs: 4 NO safety relay AGCDO gold plated volt free output
[Ue] rated operational voltage
17...127 V DC relay output
19...250 V AC relay output
Rated power in VA
120 VA 48 V AC-15 inductive
280 VA 110 V AC-15 inductive
550 VA 220 V AC-15 inductive
60 VA 24 V AC-15 inductive
Rated power in W: 60 W 24 V DC-13 inductive 100 ms
[Ithe] conventional enclosed thermal current: 2.5 A
Minimum output current: 30 mA
Response time on output: < 12 ms
Isolation between output and earth
300 V DIN VDE 0110 part 2
1500 Vrms 50/60 Hz 60 s
Safety acquisition
Read feedback loop
Read enable inputs
Read the safety outputs control
Read status of the 24 inputs
Monitor external power supply of the module
Local signalling
for diagnostic of safety system 28 LEDs
Electrical connection
1 connector removable screw terminal block 6 pins
1 connector SUB-D 44 pins for connecting the safety system
Cable cross section
0.0003…0.004 in² (0.2…2.5 mm²) without cable end safety output circuit
0.002 in² (1.5 mm²) with cable end safety output circuit
Current consumption: < 150 mA 5 V DC; <= 200 mA 24 V DC
Module format: Standard
Net Weight: 1.08 lb(US) (0.49 kg)
Environment
Ambient Air Temperature for Operation
32…104 °F (0…40 °C) without fan
32…140 °F (0…60 °C) with fan module
Ambient Air Temperature for Storage: -13…158 °F (-25…70 °C)
IP degree of protection: IP20 conforming to IEC 60529
