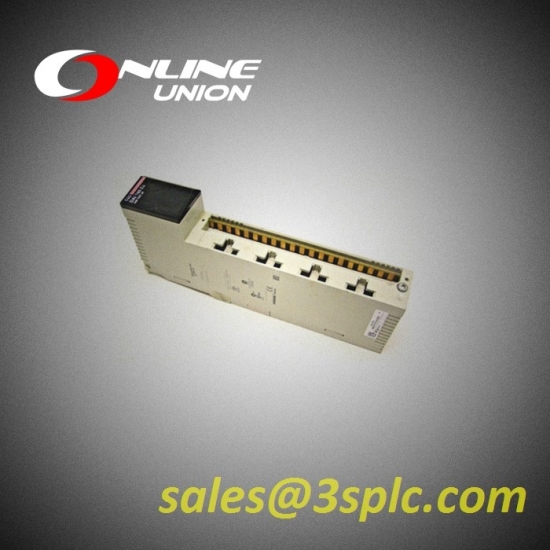

Schneider TSXAEY1614 Analog input module
Modicon Premium, 16 high level inputs, 16 bits coversion, 300mA at 5VDC
Specifications
| Main | |
| Range of Product | Modicon Premium Automation platform |
| Product or Component Type | Analog input module |
| Analogue input number | 16 |
| Analogue input type | Thermocouple thermocouple B |
| Thermocouple thermocouple E | |
| Thermocouple thermocouple J | |
| Thermocouple thermocouple K | |
| Thermocouple thermocouple L | |
| Thermocouple thermocouple N | |
| Thermocouple thermocouple R | |
| Thermocouple thermocouple S | |
| Thermocouple thermocouple T | |
| Thermocouple thermocouple U | |
| Voltage +/- 80 mV | |
| Analog/digital conversion | 16 bits |
| Complementary | |
| Nominal read cycle time | 70 ms per channel |
| Measurement error | 0.8 °C thermocouple E 25 °C |
| 0.9 °C thermocouple J 25 °C | |
| 0.9 °C thermocouple L 25 °C | |
| 1 °C thermocouple K 25 °C | |
| 1 °C thermocouple T 25 °C | |
| 1 °C thermocouple U 25 °C | |
| 1.1 °C thermocouple N 25 °C | |
| 1.2 °C thermocouple E 0...60 °C | |
| 1.3 °C thermocouple T 0...60 °C | |
| 1.3 °C thermocouple U 0...60 °C | |
| 1.4 °C thermocouple J 0...60 °C | |
| 1.4 °C thermocouple L 0...60 °C | |
| 1.6 °C thermocouple K 0...60 °C | |
| 1.7 °C thermocouple N 0...60 °C | |
| 2.1 °C thermocouple R 25 °C | |
| 2.2 °C thermocouple S 25 °C | |
| 2.4 °C thermocouple R 0...60 °C | |
| 2.5 °C thermocouple B 25 °C | |
| 3.7 °C thermocouple S 0...60 °C | |
| 4 °C thermocouple B 0...60 °C | |
| Isolation between channels and bus | 1000 Vrms |
| Isolation between channels and ground | 1000 Vrms |
| Common mode between channels | 250 V AC or 280 V AC |
| Common mode between channels and earth | 250 V DC |
| Input overvoltage protection | -15…15 V at state 0 250 Ohm |
| -30…30 V at state 1 250 Ohm | |
| Electrical connection | 2 connectors SUB-D 25 |
| Overcurrent | -30…30 mA at state 1 250 kOhm |
| Marking | CE |
| Current consumption | 300 mA 5 V DC |
| Module format | Standard |
| Net Weight | 0.77 lb(US) (0.35 kg) |
| Environment | |
| Standards | NFC 42-330 |
| IEC 1131 | |
| DIN 43710 | |
| IEC 751 | |
| DIN 43760 | |
| IEC 584 | |
| Product Certifications | DNV |
| RMRS | |
| LR | |
| ABS | |
| RINA | |
| BV | |
| GL | |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation |
| 5…95 % without condensation for storage | |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| protective treatment | TC |
| IP Degree of Protection | IP20 |
| Pollution degree | 2 |
| Ordering and shipping details | |
| Category | 22558-TSX PREMIUM, ATRIUM & PL7 PRO |
| Discount Schedule | PC22 |
| GTIN | 3.38911E+12 |
| Returnability | No |
| Country of origin | FR |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.2 in (5.5 cm) |
| Package 1 Width | 7.09 in (18.0 cm) |
| Package 1 Length | 10.2 in (26.0 cm) |
| Package 1 Weight | 15.8 oz (447.0 g) |
| Contractual warranty | |
| Warranty | 18 months |
