SCHNEIDER ATV212HD30N4 variable speed drive New Sealed High quality

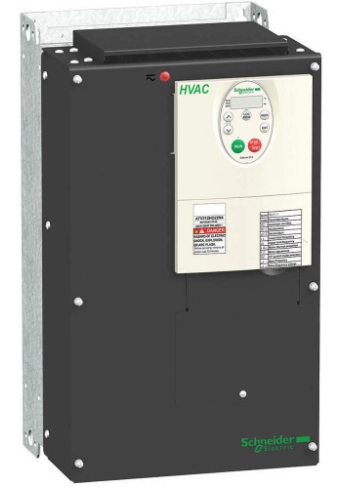

SCHNEIDER ATV212HD30N4  variable speed drive

This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 30kW / 40hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 26.4kg and its dimensions are, 240mm wide, 420mm high, 214mm deep.It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.

Specifications:

Manufacturer : SCHNEIDER

Product No. :  ATV212HD30N4

Ambient Temperature : -10 to 40 °C

Current Rating : 58.5 A

Driver Type : Variable Speed

For Use With : 3-Phase Motors

Frequency : 0.5 to 200 Hz

Horsepower Rating : 40 HP

Motor Power Rating : 30 kW

Mounting Type : Panel Mount

Output Frequency : 0.5 to 200 Hz

Overall Depth : 8.425” (214mm) in

Overall Dimensions : 8.425 x 16.535 x 9.449” (214 x 420 x 240mm)

Overall Length : 16.535” (420mm) in

Overall Width : 9.449” (240mm) in

Phase : 3 Phase

Power Rating : 30 kW

Primary Type : AC Drive

Series : Altivar 212 Series

Special Features : Pump/Fan Functions

Standards : C-Tick, CE, CSA, EN 55011, EN 61800-3, EN 61800-5-1, EN/IEC 60529, EN/IEC 61800-5-1, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61800-3, IEC 61800-5-1, NOM 117, UL

Supply Voltage : 480 VAC

Type : Variable Frequency
