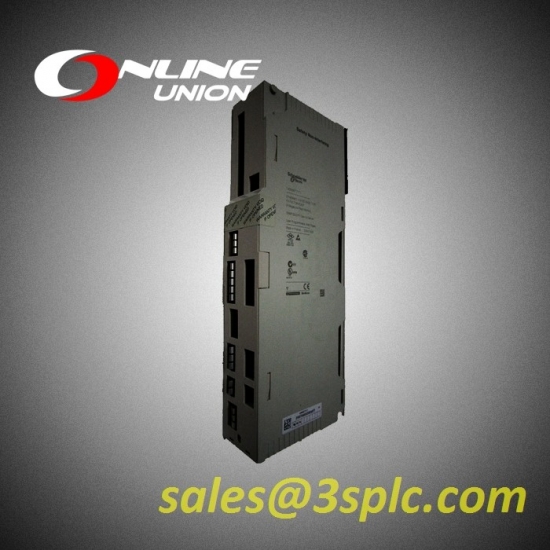

Scheider TSX3710AC Micro TSX DMZ 28DR Module
TSX3710AC I24V QREL.TBLK
Specifications
| Product series | Modicon TSX Micro automation platform |
| Product or component type | Modular base controller |
| Primary voltage | 100...240 V 90... 264 V AC |
| Input current | 2 mA 60 A |
| Immunity to microfractures | 20 ms |
| Output current | 0.5 A |
| Complementary | |
| Number of slots | 2 |
| Module type | Screw terminal Digital I/O |
| Number of digital inputs | 16 discrete input(s) at 24 V to AC |
| Number of digital outputs | Relay for 12 |
| Integrated connection type | 1 serial connection Uni-Telway 19.2 kbit/s |
| 1 Modbus Modbus RTU 19.2 kbit/s | |
| Real-time clock | With |
| Memory Description | Built-in RAM 14 Kword data |
| Flash 15 Kword data | |
| Maximum size of object fields | 256 %Mi |
| 1 %MWi inner word | |
| 128 %KWi fixed word | |
| Execution time per command | 0.25 μs Boolean without |
| PCMCIA card 4.81 μs arithmetic REAL variable without PCMCIA card | |
| Application time for 1 K instruction | 3.03 100% Boolean without |
| PCMCIA card 0.25 65% Boolean and 35% numeric arithmetic without PCMCIA card | |
| Application Structure | 1 main mission |
| , 8 event missions | |
| , 1 quick mission | |
| System redundancy | Main task for 1.9 ms |
| Type of protection | Short circuit |
| Overload protection | |
| Mains frequency | 50...60 Hz |
| Total Useful Secondary Power | 24 W |
| Electromagnetic compatibility | Conforms to electrostatic dischargeIEC 1000-4-2 level 3 |
| Conforms to electromagnetic field immunity testConforms to IEC 1000-4-3 level 3 | |
| Rapid transient resistance Conforms to IEC 1000-4-4 level 3 | |
| Conforms to Immunity to Pulse WavesIEC 1000-4-5 | |
| Conforms to damped oscillation waveIEC 1000-4-12 | |
| Conforms to Immunity to electromagnetic interferenceIEC 61131-2 | |
| Environment | |
| Nominal operating ambient temperature | 0… 60°C |
| Storage ambient conditions | -25… 70°C |
| Relative humidity | 10… 95 % non-condensing |
| for 5... 95 % non-condensing for operation | |
| Working altitude | 0...2000 m |
| Width | 282.7 mm |
| Altitude | 151 mm |
| Depth | 152 mm |
| Product weight | 1.91 kg |
| Packaging units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15,500 cm |
| Package 1 Width | 16,500 cm |
| Package 1 Length | 18,000 cm |
| Package 1 Weight | 1,939 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30,000 cm |
| Package 2 Width | 40,000 cm |
| Package 2 Length | 60,000 cm |
| Package 2 Weight | 12,360 kg |
| Contract guarantee | |
| Warranty | 18 months |
