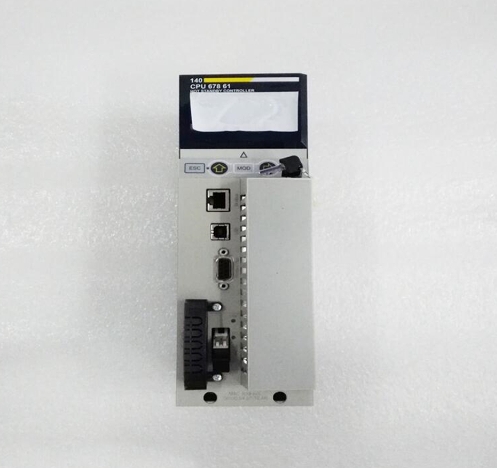

Schneider 140CPU67861 Unity Hot Standby Processor

Schneider 140CPU67861 Model(s): Modicon PLC, Modicon Quantum,31 - 2 rack(s) per ethernet X80 remote I/O

Unity Hot Standby processor with single mode Ethernet - 11 MB - 266 MHz

Technical specifcations for 140CPU67861

Dimensions: 10.2cm*22.9cm*27.9cm

Weight: 1.6kg

Description: CPU Module

Main

Range of Product: Modicon Quantum automation platform

Product or Component Type: Unity processor

Complementary

Mode of Transmission: Single mode

Clock frequency: 266 MHz

Number of slots: 10; 16; 4; 6; 2

Number of racks: 2 - local

Number of distributed I/O station: 63 1 3 Modbus Plus

Number of remote I/O station: 31 - 2 S908 remote I/O; 31 - 2 ethernet Quantum remote I/O; 31 - 2 ethernet X80 remote I/O

Discrete I/O number: 31744 inputs, 31744 outputs - remote; 8000 inputs, 8000 outputs - distributed - per network Modbus Plus; Unlimited (31 drops of 28 slots max) - ethernet remote I/O; 0 - local - forbidden in Hot Standby application

Analogue I/O number: 500 inputs, 500 outputs - distributed - per network Modbus Plus; Unlimited (31 drops of 28 slots max) - ethernet remote I/O; 1984 inputs,1984 outputs - remote; 0 - local - forbidden in Hot Standby application

Application specific I/O: Serial link; High-speed interrupt inputs; Accurate time stamping; Counter

communication service: Ethernet router

Number of optional modules: 6 Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)

Maximum number of connections: 1 USB; 2 AS-Interface - distributed; 4 AS-Interface - remote; 6 Ethernet TCP/IP - local; 6 Modbus Plus - local; 6 Profibus DP - local; 1 Modbus RS232/485 Modbus/ASCII)

Integrated connection type: 1 Modbus Plus; 1 Modbus; 1 USB; 1 optic fibre Hot Standby

Checks: Hot standby; Process control

Memory description: Expandable 8 MB - file storage with PCMCIA card; Internal RAM 11264 kB - 1536 kB for data

Switch Function: Key switch memory port on/off

Application structure: 1 periodic fast task - forbidden in Hot Standby application; 128 I/O interrupt tasks - forbidden in Hot Standby application;128 interrupt tasks - forbidden in Hot Standby application; 32 timer interrupt tasks - forbidden in Hot Standby application; 4 auxiliary tasks - forbidden in Hot Standby application; 1 cyclic/periodic master task -

Number of instructions per ms: 10.28 Kinst/ms 100 % Boolean; 10.07 Kinst/ms 65 % Boolean and 35 % numerical

System overhead: 0.2 ms fast task; 1 ms master task

Bus current requirement: 2760 mA

Local signalling: for Ethernet activity (COM) 1 LED (green); for Ethernet collision 1 LED (red)

Electrical connection: 1 female connector SUB-D 9 for connecting to the Modbus Plus network; 1 connector RJ45 for connecting Modbus bus;1 connector LC (single mode fiber optic) for interconnecting primary and secondary PLCs up to 16 km

Environment

protective treatment: Conformal coating Humiseal 1A33

Product Certifications: UL; CE; CSA; GOST; Misc (Marine)

Standards: HazLoc
