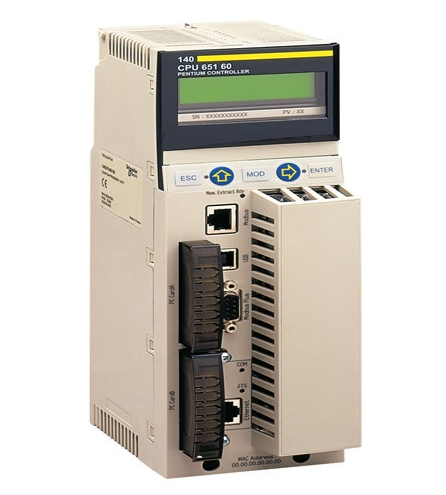

Schneider 140CPU65160 MODICON QUANTUM UNITY PROCESSOR - 1024 KB - 266MHZ
The Schneider Electric 140CPU65160 is a powerful Unity processor designed for industrial control and automation applications. As a critical control system component, it offers advanced features and versatile connectivity options to meet the demands of modern industrial environments.
Equipped with various connectors, the 140CPU65160 facilitates seamless integration into different network architectures. It includes a female SUB-D 9 connector for Modbus Plus network connection, RJ45 connectors for Modbus and Ethernet networks, and MT-RJ fiber optic connector for interconnecting primary and secondary PLCs in hot standby architecture. These connections enable efficient data exchange and communication between devices, enhancing system flexibility and scalability.
Technical specifcations for 140CPU65160
Dimensions: 32.5cm*18.5cm*11cm
Weight: 1.4kg
Description: Schneider Electric 140CPU65160 TSXPCM002M
Main
Range of Product: Modicon Quantum automation platform
Product or Component Type: Unity processor
Complementary
Clock frequency: 266 MHz
Number of slots: 16; 6; 4; 10; 2
Number of racks: 2 - local
Number of distributed I/O station: 63 1 3 Modbus Plus
Number of remote I/O station: 31 - 2 S908 remote I/O; 31 - 2 ethernet Quantum remote I/O; 16 - 2 ethernet X80 remote I/O
Discrete I/O number: 31744 inputs, 31744 outputs - remote; 8000 inputs, 8000 outputs - distributed - per network Modbus Plus; Unlimited (26 slots max) - local
; Unlimited (31 drops of 28 slots max) - ethernet remote I/O
Analogue I/O number: 500 inputs, 500 outputs - distributed - per network Modbus Plus; 1984 inputs,1984 outputs - S908 remote I/O; Unlimited (26 slots max) - local; Unlimited (31 drops of 28 slots max) - ethernet remote I/O
Application specific I/O: Accurate time stamping; High-speed interrupt inputs; Serial link; Counter
communication service: Ethernet router
Number of optional modules: 6 Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
Maximum number of connections: 1 USB; 2 AS-Interface - distributed; 4 AS-Interface - remote; 6 Ethernet TCP/IP - local; 6 Modbus Plus - local; 6 Profibus DP - local; 1 Modbus RS232/485 Modbus/ASCII)
Integrated connection type: 1 Modbus Plus; 1 Ethernet TCP/IP; 1 Modbus; 1 USB
Checks: Process control
Memory description: Expandable 7168 kB - program with PCMCIA card; Expandable 8 MB - file storage with PCMCIA card; Internal RAM 1024 kB
Switch Function: Key switch memory port on/off
Application structure: 1 cyclic/periodic master task -; 1 periodic fast task -; 128 I/O interrupt tasks -; 128 interrupt tasks -; 32 timer interrupt tasks -; 4 auxiliary tasks -
Number of instructions per ms: 10.28 Kinst/ms 100 % Boolean; 10.07 Kinst/ms 65 % Boolean and 35 % numerical
System overhead: 0.2 ms fast task; 1 ms master task
Bus current requirement: 2760 mA
Local signalling: for Ethernet activity (COM) 1 LED (green); for Ethernet collision 1 LED (red)
Electrical connection: 1 female connector SUB-D 9 for connecting to the Modbus Plus network; 1 connector RJ45 for connecting Ethernet network; 1 connector RJ45 for connecting Modbus bus
Environment
Product Certifications: Misc (Marine); UL; CSA; CE; GOST
Standards: HazLoc
