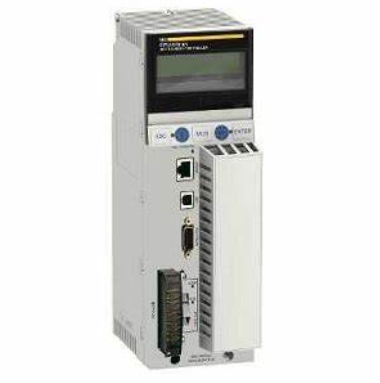

Schneider 140CPU67060 Unity Hot Standby Processor

Schneider 140CPU67060 The Unity Processor Number of distributed I/O station 63 station(s) - 1 rack(s) - 3 Modbus Plus network(s)

Unity Hot Standby processor with multimode Ethernet - 512 kB - 266 MHz

Technical specifcations for 140CPU67060

Dimensions: 32.5 cm x 19 cm x 11 cm

Weight: 1.4 kg

Description: Schneider Electric 140CPU67060 The Unity Processor

Main

Range of Product: Modicon Quantum automation platform

Product or Component Type: Unity processor

Complementary

Mode of Transmission: Multi mode

Clock frequency: 266 MHz

Number of slots: 4; 2; 10; 16; 6

Number of racks: 2 - local

Number of distributed I/O station: 63 1 3 Modbus Plus

Number of remote I/O station:

0 - 0 ethernet Quantum remote I/O

6 - 2 ethernet X80 remote I/O

0 - 0 S908 remote I/O

Discrete I/O number:

8000 inputs, 8000 outputs - distributed - per network Modbus Plus

0 - S908 remote I/O - not configurable

Up to 6 drops X80 - ethernet remote I/O

0 - local - forbidden in Hot Standby application

Analogue I/O number:

500 inputs, 500 outputs - distributed - per network Modbus Plus

0 - S908 remote I/O - not configurable

Up to 6 drops X80 - ethernet remote I/O

0 - local - forbidden in Hot Standby application

Application specific I/O:

Serial link

Counter

Accurate time stamping

High-speed interrupt inputs

communication service: Ethernet router

Number of optional modules: 3 Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)

Maximum number of connections:

1 USB

2 AS-Interface - distributed

4 AS-Interface - remote

1 Modbus RS232/485 Modbus/ASCII)

3 Ethernet TCP/IP - local

3 Modbus Plus - local

3 Profibus DP - local

Integrated connection type:

1 Modbus Plus

1 Modbus

1 USB

1 optic fibre Hot Standby

Checks: Hot standby; Process control

Memory description:

Expandable 7168 kB - program with PCMCIA card

Expandable 8 MB - file storage with PCMCIA card

Internal RAM 512 KB - 512 kB for data

Switch Function: Key switch memory port on/off

Application structure:

1 periodic fast task - forbidden in Hot Standby application

128 I/O interrupt tasks - forbidden in Hot Standby application

128 interrupt tasks - forbidden in Hot Standby application

32 timer interrupt tasks - forbidden in Hot Standby application

4 auxiliary tasks - forbidden in Hot Standby application

1 cyclic/periodic master task -

Number of instructions per ms:

10.28 Kinst/ms 100 % Boolean

10.07 Kinst/ms 65 % Boolean and 35 % numerical

System overhead: 0.2 ms fast task; 1 ms master task

Bus current requirement: 2500 mA

Local signalling:

for Ethernet activity (COM) 1 LED (green)

for Ethernet collision 1 LED (red)

Electrical connection:

1 female connector SUB-D 9 for connecting to the Modbus Plus network

1 connector RJ45 for connecting Modbus bus

1 connector MT-RJ (multimode fiber optic) for interconnecting primary and secondary PLCs up to 4 km

Environment

Product Certifications: GOST; CE; Misc (Marine); CSA; UL

Standards: HazLoc
