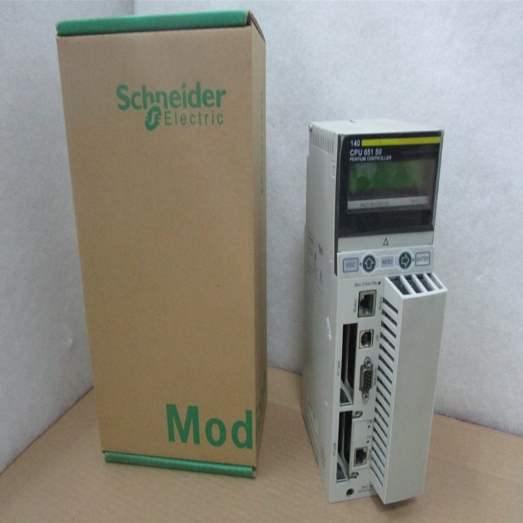

Schneider 140CPU65150 Unity Processor-Modicon Quantum

Schneider 140CPU65150 MODICON QUANTUM CPU UNITY PROCESSOR - 768 KB - 166 MHZ

The Schneider Electric Part Number 140CPU65150, a Unity processor, is purpose-built to deliver advanced control capabilities in industrial automation. As a pivotal component within the Unity family, this CPU provides state-of-the-art solutions for the intricate demands of complex control and monitoring systems.

Technical specifcations for 140CPU65150

Dimensions: 32.5 cm x 18.5 cm x 11 cm

Weight: 1.4 kg

Description: Schneider Electric 140CPU65150 Unity Quantum CPU with Ethernet,w 512/71

Main

Range of Product: Modicon Quantum automation platform

Product or Component Type: Unity processor

Complementary

Clock frequency: 166 MHz

Number of slots:10; 16; 6; 4; 2

Number of racks: 2 - local

Number of distributed I/O station: 63 1 3 Modbus Plus

Number of remote I/O station:

31 - 2 S908 remote I/O

31 - 2 ethernet Quantum remote I/O

16 - 2 ethernet X80 remote I/O

Discrete I/O number:

31744 inputs, 31744 outputs - remote

8000 inputs, 8000 outputs - distributed - per network Modbus Plus

Unlimited (26 slots max) - local

Unlimited (31 drops of 28 slots max) - ethernet remote I/O

Analogue I/O number:

500 inputs, 500 outputs - distributed - per network Modbus Plus

1984 inputs,1984 outputs - S908 remote I/O

Unlimited (26 slots max) - local

Unlimited (31 drops of 28 slots max) - ethernet remote I/O

Application specific I/O:

Accurate time stamping

Serial link

High-speed interrupt inputs

Counter

communication service: Ethernet router

Number of optional modules: 6 Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)

Maximum number of connections:

1 USB

2 AS-Interface - distributed

4 AS-Interface - remote

6 Ethernet TCP/IP - local

6 Modbus Plus - local

6 Profibus DP - local

1 Modbus RS232/485 Modbus/ASCII)

Integrated connection type:

1 Modbus Plus

1 Ethernet TCP/IP

1 Modbus

1 USB

Checks: Process control

Memory description:

Expandable 7168 kB - program with PCMCIA card

Expandable 8 MB - file storage with PCMCIA card

Internal RAM 768 kB

Switch Function: Key switch memory port on/off

Application structure:

1 cyclic/periodic master task -

1 periodic fast task -

128 I/O interrupt tasks -

128 interrupt tasks -

32 timer interrupt tasks -

4 auxiliary tasks -

Number of instructions per ms:

10.28 Kinst/ms 100 % Boolean

10.07 Kinst/ms 65 % Boolean and 35 % numerical

System overhead: 0.2 ms fast task; 1 ms master task

Bus current requirement: 2160 mA

Local signalling:

for Ethernet activity (COM) 1 LED (green)

for Ethernet collision 1 LED (red)

Electrical connection:

1 female connector SUB-D 9 for connecting to the Modbus Plus network

1 connector RJ45 for connecting Ethernet network

1 connector RJ45 for connecting Modbus bus

Environment

Product Certifications: GOST; CE; Misc (Marine); CSA; UL

Standards: HazLoc
