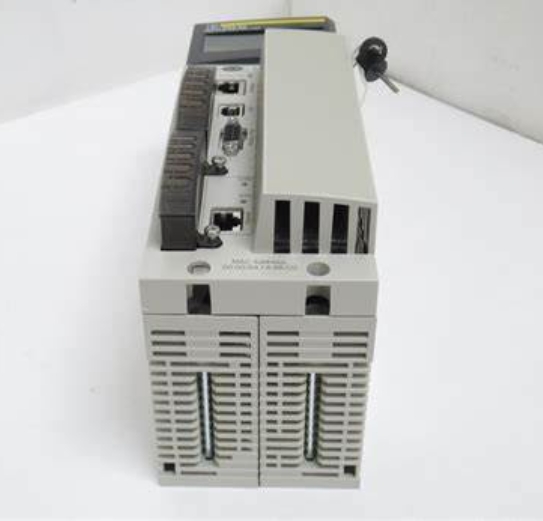

Schneider 140CPU65260 Unity processor Modicon Quantum

Schneider 140CPU65260 MODICON QUANTUM PROCESSOR UNITY PROCESSOR MODICON QUANTUM - 3072 KB - 266 MHZ

At the heart of the 140CPU65260 lies a powerful Unity processor, boasting a clock frequency of 266 MHz. This processor empowers users with exceptional processing capabilities, ensuring rapid execution of complex control algorithms and facilitating seamless integration into demanding industrial environments.

Technical specifcations for 140CPU65260

Dimensions: 32.5 cm x 18.5 cm x 11 cm

Weight: 1.4 kg

Description: Schneider Electric 140CPU65260 Unity CPU 266MHz

Main

Range of Product: Modicon Quantum automation platform

Product or Component Type: Unity processor

Complementary

Clock frequency: 266 MHz

Number of slots: 16; 6; 2; 10; 4

Number of racks: 2 - local

Number of distributed I/O station: 63 1 3 Modbus Plus

Number of remote I/O station: 31 - 2 S908 remote I/O; 31 - 2 ethernet Quantum remote I/O; 31 - 2 ethernet X80 remote I/O

Discrete I/O number:

8000 inputs, 8000 outputs - distributed - per network Modbus Plus

Unlimited (26 slots max) - local

Unlimited (31 drops of 28 slots max) - ethernet remote I/O

31744 inputs, 31744 outputs - S908 remote I/O

Analogue I/O number:

500 inputs, 500 outputs - distributed - per network Modbus Plus

Unlimited (26 slots max) - local

Unlimited (31 drops of 28 slots max) - ethernet remote I/O

1984 inputs,1984 outputs - remote

Application specific I/O:

Counter

Accurate time stamping

Serial link

High-speed interrupt inputs

communication service: Ethernet router

Number of optional modules: 6 Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)

Maximum number of connections:

1 USB

2 AS-Interface - distributed

4 AS-Interface - remote

6 Ethernet TCP/IP - local

6 Modbus Plus - local

6 Profibus DP - local

1 Modbus RS232/485 Modbus/ASCII)

Integrated connection type:

1 Modbus Plus

1 Ethernet TCP/IP

1 Modbus

1 USB

Checks: Process control

Memory description:

Expandable 7168 kB - program with PCMCIA card

Expandable 8 MB - file storage with PCMCIA card

Internal RAM 3072 kB

Switch Function: Key switch memory port on/off

Application structure:

1 cyclic/periodic master task -

1 periodic fast task -

128 I/O interrupt tasks -

128 interrupt tasks -

32 timer interrupt tasks -

4 auxiliary tasks -

Number of instructions per ms:

10.28 Kinst/ms 100 % Boolean

10.07 Kinst/ms 65 % Boolean and 35 % numerical

System overhead: 0.2 ms fast task; 1 ms master task

Bus current requirement: 2760 mA

Local signalling:

for Ethernet activity (COM) 1 LED (green)

for Ethernet collision 1 LED (red)

Electrical connection:

1 female connector SUB-D 9 for connecting to the Modbus Plus network

1 connector RJ45 for connecting Ethernet network

1 connector RJ45 for connecting Modbus bus

Environment

Product Certifications: CSA; Misc (Marine); UL; GOST; CE

Standards: HazLoc
