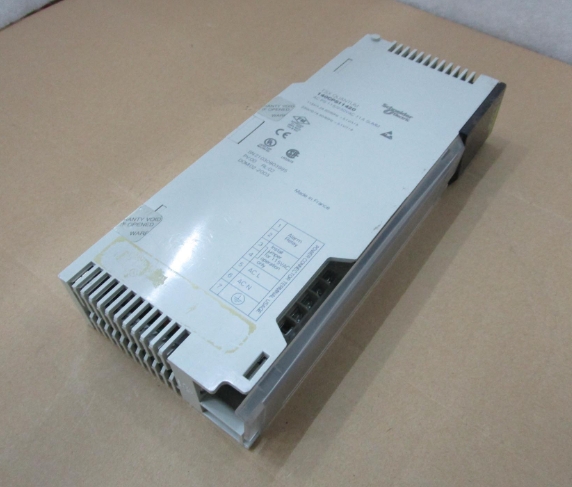

Schneider 140CPS11420 MODICON QUANTUM POWER SUPPLY MODULE 7-POINT TERMINAL CONNECTOR 115 V/230 V AC
The Modicon Quantum power supply module, identified as the 140CPS11420, serves as an integral component within the Modicon Quantum automation platform. Offering versatility for both summable and standalone applications, this module provides flexibility to adapt to various automation scenarios.
Capable of accepting input voltages ranging from 115 V (93...132 V) AC to 230 V (170...276 V) AC, the module accommodates a broad spectrum of power sources. With input currents of 1300 mA (115 V) and 750 mA (230 V), efficient energy utilization is ensured.
Technical specifcations for 140CPS11420
Dimensions: 31 cm x 16.5 cm x 5 cm
Weight: 0.8 kg
Description: Schneider Electric 140CPS11420 AC PS 115/230V SUMM
Main
Range of Product: Modicon Quantum automation platform
Product or Component Type: Power supply module
Power supply type: Summable or standalone
Complementary
Input voltage: 115 V 93...132 V) AC 47…63 Hz; 230 V 170...276 V) AC
Input current: 1300 mA 115 V; 750 mA 230 V
Inrush current: 19 A 230 V; 38 A 115 V
Rated power in VA: 130 VA
Associated fuse rating: 2 A, slow-blow
Harmonic distortion: <= 10 % of fundamental rms value
Output voltage: 5.1 V DC
Power supply output current: 11 A 140 °F (60 °C) standalone; 20 A 140 °F (60 °C) summable
Output overvoltage protection: Internal
Output overload protection: Internal
Power dissipation: 6 + (1.5 x Iout) where Iout is in A
Alarm output: 1 NC 6 A 220 V power supply fault
Local signalling: for power (PWR OK) 1 LED (green)
Marking: CE
Module format: Standard
Net Weight: 1.43 lb(US) (0.65 kg)
Environment
Standards: UL 508; CSA C22.2 No 142
Product Certifications: cUL
Resistance to electrostatic discharge: 4 kV contact IEC 801-2; 8 kV on air IEC 801-2
Resistance to electromagnetic fields: 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3
Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
Relative Humidity: 95 % without condensation
Operating altitude: <= 16404.2 ft (5000 m)
