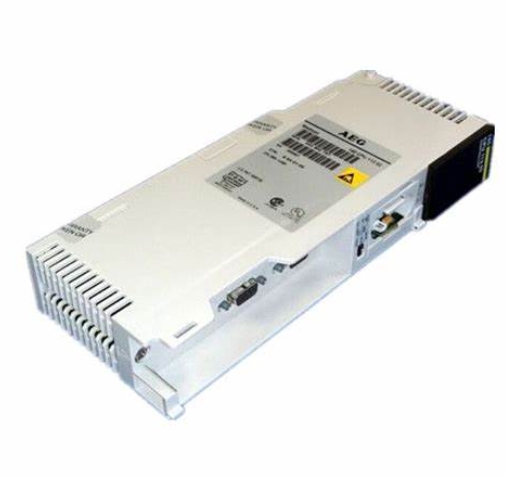

Schneider 140CPU11302 MODICON QUANTUM PROCESSOR 256K RAM 8K USER LOGIC 1XMB
140CPU11302 Concept processor 80186 Modicon Quantum - 1 Modbus RS232, 1 Modbus Plus.
Memory description :Internal RAM 109 kB ; exact time: for 1 Kinstruction 0.3...1.4 ms LL984 ; watchdog timer :250 ms
Technical specifcations for 140CPU11302
Dimensions: 15cm*3.5cm*5.2cm
Weight: 0.5kg
Description: processor module
Main
Range of Product: Modicon Quantum automation platform
Product or Component Type: Processor
Software name: ProWORX 32; Concept
Mathematical coprocessor: Without
Complementary
Clock frequency: 20 MHz
Memory description: Internal RAM 109 kB
Exact time for 1 Kinstruction: 0.3...1.4 ms LL984
Watchdog timer: 250 ms
Clock drift: +/-8 s/day 32…140 °F (0…60 °C)
I/O words:30 I/32 O distributed; 64 I/64 O max local; 64 I/64 O remote
I/O words/network: 500 I/500 O distributed
Drops/network: 63 distributed
Number of drops: 31 remote
Number of network: 2 remote; 3 distributed
Battery type: Lithium 5 µA 110 µA
Battery Capacity: 1.2 Ah
Battery life: 10 year(s)
Number of port: 1 Modbus RS232; 1 Modbus Plus
Communication module processor capacity: 2 NOM, NOE, CR, NMS
Switch Function: Without key switch
Marking: CE
Bus current requirement: 780 mA
Module format: Standard
Net Weight: 0.7 lb(US) (0.3 kg)
Environment
Product Certifications: cUL; FM Class 1 Division 2
Standards: UL 508; CSA C22.2 No 142
Resistance to electrostatic discharge: 4 kV contact IEC 801-2; 8 kV on air IEC 801-2
Resistance to electromagnetic fields: 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3
Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
Relative Humidity: 95 % without condensation
Operating altitude: <= 16404.2 ft (5000 m)
