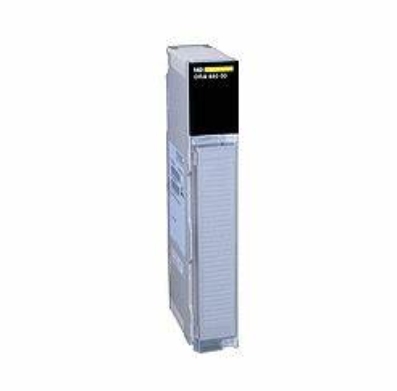

Schneider 140CPS11100 MODICON QUANTUM POWER SUPPLY MODULE - 120..230 V AC - STANDALONE
Schneider Electric 140CPS11100 AC PS 115/230VAC 3A AC POWER SUPPLY
Technical specifcations for 140CPS11100
Dimensions: 31 cm x 16.5 cm x 5 cm
Weight: 0.65kg
Description: Schneider Electric 140CPS11100 AC PS 115/230VAC 3A
Main
Range of Product: Modicon Quantum automation platform
Product or Component Type: Power supply module
Power supply type: Standalone
Complementary
Input voltage: 120...230 V 100...276 V) AC 47…63 Hz
Input current: 200 mA 230 V; 400 mA 115 V
Inrush current: 10 A 230 V; 20 A 115 V
Rated power in VA: 50 VA
Associated fuse rating: 1.5 A, slow-blow
Harmonic distortion: <= 10 % of fundamental rms value
Output voltage: 5.1 V DC
Power supply output current: 3 A standalone
Output overvoltage protection: Internal
Output overload protection: Internal
Power dissipation: 2 + (3 x Iout) where Iout is in A
Local signalling: for power (PWR OK) 1 LED (green)
Marking: CE
Module format: Standard
Net Weight: 1.43 lb(US) (0.65 kg)
Environment
Standards: UL 508; CSA C22.2 No 142
Product Certifications: cUL; FM Class 1 Division 2
Resistance to electrostatic discharge: 4 kV contact IEC 801-2; 8 kV on air IEC 801-2
Resistance to electromagnetic fields: 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3
Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
Relative Humidity: 95 % without condensation
Operating altitude: <= 16404.2 ft (5000 m)
