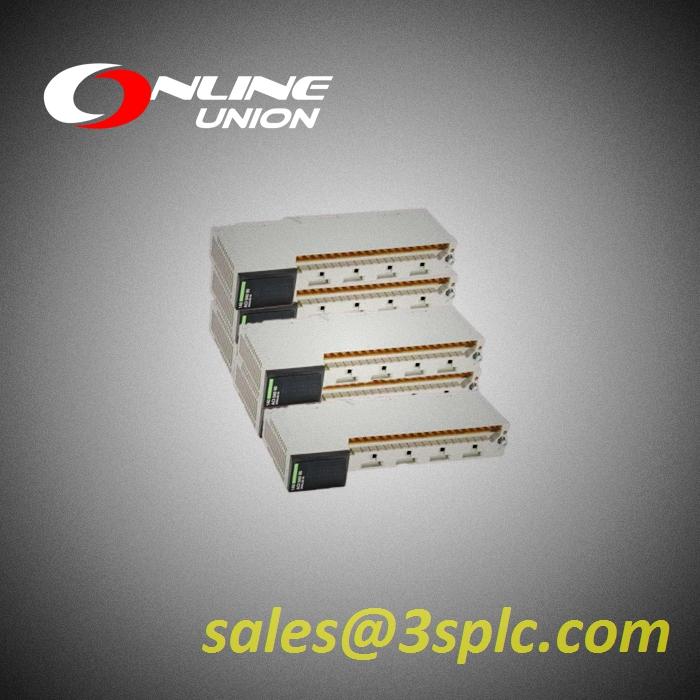

Schneider 140CPS22400 MODICON QUANTUM POWER SUPPLY MODULE - 24 V DC 20..30 V - REDUNDANT
The 140CPS22400 stands as a critical component within the Modicon Quantum automation platform, specifically designed as a redundant power supply module. This module ensures a reliable and uninterrupted power source, operating at 24 V DC with a broad input voltage range of 20 to 30 V.
As a redundant power supply module, the 140CPS22400 exhibits robust power capabilities. It operates with an input voltage of 24 V DC, drawing an input current of 3800 mA. The inrush current, crucial during start-up, ranges from 14 A at 20 V to 25 A at 24 V. In the event of a power interruption lasting 100 ms, the module can sustain an inrush current of 14 A at 20 V for 1 ms. The associated fuse rating is set at 5 A with a slow-blow characteristic.
Technical specifcations for 140CPS22400
Dimensions: 31 cm x 16.5 cm x 5 cm
Weight: 0.85kg
Description: Schneider Electric 140CPS22400 DC PS 24V 8A REDUNDANT
Main
Range of Product: Modicon Quantum automation platform
Product or Component Type: Power supply module
Power supply type: Redundant
Complementary
Input voltage: 24 V 20...30 V) DC
Input current: 3800 mA
Inrush current: 14 A 20 V; 25 A 24 V
Maximum input power interruption: 100 ms; 1 ms 20 V
Associated fuse rating: 5 A, slow-blow
Output voltage: 5.1 V DC
Power supply output current: 8 A redundant
Output overvoltage protection: Internal
Output overload protection: 2.3 x maximum rated input voltage for 1.3 ms
Power dissipation: 6 + (1.8 x Iout) where Iout is in A
Alarm output: 1 NC 6 A 220 V power supply fault
Local signalling: for power (PWR OK) 1 LED (green)
Marking: CE
Module format: Standard
Net Weight: 1.43 lb(US) (0.65 kg)
Environment
Standards: UL 508; CSA C22.2 No 142
Product Certifications: FM Class 1 Division 2; cUL
Resistance to electrostatic discharge: 4 kV contact IEC 801-2; 8 kV on air IEC 801-2
Resistance to electromagnetic fields: 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3
Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
Relative Humidity: 95 % without condensation
Operating altitude: <= 16404.2 ft (5000 m)
