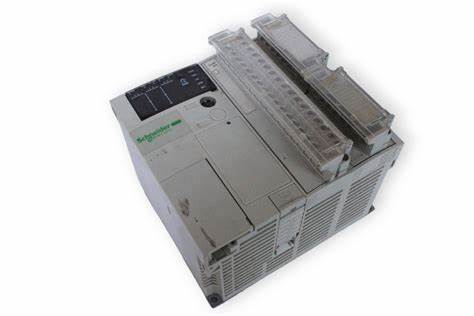

Scheider TSX3710001 Modular base controller
Modicon TSX Micro, UNI-TELWAY, 0.5A, 19.2kbit/s
Specifications
| Main | |
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Modular base controller |
| Primary voltage | 100...240 V 90…264 V AC |
| Input current | 2 mA 60 A |
| Immunity to microbreaks | 20 ms |
| Output current | 0.5 A |
| Complementary | |
| Number of slots | 3 |
| Integrated connection type | 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s |
| 1 Modbus Modbus RTU 19.2 kbit/s | |
| Realtime clock | With |
| Memory description | Flash 15 Kwords data |
| Internal RAM 20 Kwords data | |
| Internal RAM (with PCMCIA card) 128 Kwords program and data | |
| Internal RAM 128 Kwords data storage | |
| Maximum size of object areas | 128 %KWi constant words |
| 256 %Mi | |
| 1 %MWi internal words | |
| Execution time per instruction | 0.13 µs Boolean without PCMCIA card |
| 4.5 µs arithmetic REAL floating without PCMCIA card | |
| 0.19 µs Boolean with PCMCIA card | |
| 4.5 µs arithmetic REAL floating with PCMCIA card | |
| Execution time for 1 Kinstruction | 5.88 100 % Boolean without PCMCIA card |
| 0.27 65 % Boolean and 35 % numerical without PCMCIA card | |
| 4 100 % Boolean with PCMCIA card | |
| 0.266 65 % Boolean and 35 % numerical with PCMCIA card | |
| Application structure | 16 event tasks |
| 1 master task | |
| 1 fast task | |
| System overhead | 1.6 ms for master task |
| Protection type | Overload protection |
| Short-circuit | |
| Total useful secondary power | 16 W |
| Electromagnetic compatibility | Electrostatic discharge conforming to IEC 1000-4-2 level 3 |
| Electromagnetic field immunity test conforming to IEC 1000-4-3 level 3 | |
| Resistance to fast transient conforming to IEC 1000-4-4 level 3 | |
| Immunity to impulse waves conforming to IEC 1000-4-5 | |
| Damped oscillatory wave conforming to IEC 1000-4-12 | |
| Immunity to electromagnetic interference conforming to IEC 61131-2 | |
| Environment | |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation |
| 5…95 % without condensation for operation | |
| Operating altitude | 0...2000 m |
| Width | 341.4 mm |
| Height | 151 mm |
| Depth | 152 mm |
| Net weight | 1.72 kg |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.0 cm |
| Package 1 Width | 17.0 cm |
| Package 1 Length | 24.0 cm |
| Package 1 Weight | 1.824 kg |
| Contractual warranty | |
| Warranty | 18 months |
