Allen Bradley 2711PT-19C22D9P PowerFlex 700 Brand new

Allen Bradley  2711PT-19C22D9P   PowerFlex

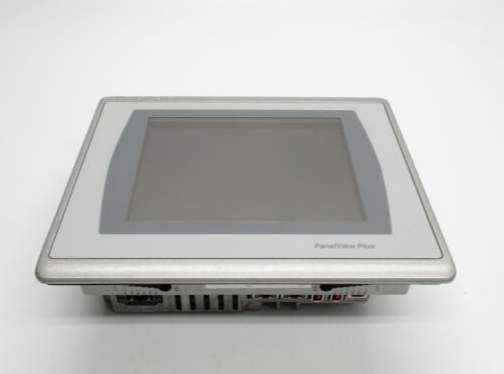

The Allen-Bradley 2711P-T19C22D9P is a PanelView Plus 7 Performance operator terminal. This Human Machine Interface (HMI) device is powered by an external supply voltage of 18-32VDC. It has a 19-inch Color active matrix, thin-film transistor (TFT) LCD screen with embedded Touchscreen operator interface. It has a variety of communication ports such as, Two (2) Ethernet and Three (3) USB ports.

Technical specifications for 2711P-T19C22D9P

Brand：Allen-Bradley

Display Size：19 in.

Part Number/Catalog No：2711P-T19C22D9P

Manufacturer：Rockwell Automation / Allen-Bradley

Product Family:PanelView Plus 7 Performance terminals

Operator Input:Touch

Display Type:Color active-matrix TFT

Display Area:376 x 301 mm (14.8 x 11.9 in.)

Resolution:1280 x 1024 SXGA, 18-bit color graphics

Touch:Analog resistive Actuation: 1 million presses; operating force: 100 g

System Memory:512 RAM, 512 MB nonvolatile memory (approx. 80 MB free user memory)

Communication ports:Two (2) Ethernet, Three (3) USB host

Input Voltage range:18-30 VDC

Power Consumption:50 W max (2.1 A at 24V DC)

Backlight:White light-emitting diode, solid state Life: 50,000 h min at 40 °C (104 °F) to half-brightness, backlight is not replaceable

Product Line：Panelview Plus 7

Input Type：Touchscreen

Display Color：Color

Memory：512 Mb

Input Voltage：24 VDC

Backlight：LED

Weight：12.4 LBS

Description:

The Allen-Bradley 2711P-T19C22A9P is a PanelView Plus 7 Performance operator terminal. It is an electronic device that is powered by an external supply voltage of 18-32VDC. It performs proves visualization and control and provide user and operators to control a process or machine near the application or remotely from a convenient location.

Being a 19-inch PanelView Plus 7 terminal, it has the largest display screen. It features 18-bit color screen with display resolution of 1280 C 1024 pixels and viewing area of 376 x 301 mm (14.8 x 11.9 in.). This allows designing of a process mimic with a high degree of detail and information. It is equipped with a backlight that is capable of providing contrast and lighting to screen at a minimum lifespan of 50,000 hrs when operated at the recommended temperature of 40 Degree Celsius or 104 Degree Fahrenheit. It allows operator to initiate control inputs, data change commands and navigation actions via the analog resistive touchscreen that is rated to operate up to 1 million actuation at an operating force of 100 grams.
