Allen Bradley 2711P-T15C22D8 PowerFlex 700 Brand new

Allen Bradley  2711P-T15C22D8   PowerFlex

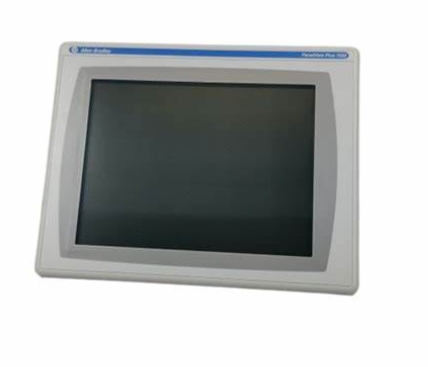

The Allen-Bradley 2711P-T15C22D8 is a PanelView Plus 7 Standard operator terminal. This Human Machine Interface (HMI) device is powered by an external supply voltage of 18-30VDC. It has a 15-inch Color active matrix, thin-film transistor (TFT) LCD with embedded Touchscreen operator interface. It has a variety of communication ports such as, Two (2) Ethernet and Two (2) USB ports.

Technical specification for 2711P-T15C22D8S

Brand：Allen-Bradley

Display Size：15 in.

Part Number/Catalog No.：2711P-T15C22D8

Manufacturer：Rockwell Automation / Allen-Bradley

Product Family:PanelView Plus 7 Standard terminals

Operator Input:Touch

Display Type:Color active-matrix TFT

Display Area:304 x 228 mm

Resolution:1024 x 768 XGA, 18-bit color graphics

Touch:Analog resistive Actuation: 1 million presses; operating force: 100 g

System Memory:512 RAM, 512 MB nonvolatile memory (approx. 80 MB free user memory)

Communication ports:Two (2) Ethernet, Two (2) USB host

Input Voltage range:18-30 VDC

Power Consumption:50 W max (2.1 A at 24V DC)

Backlight:White light-emitting diode, solid state Life: 50,000 h min at 40 °C (104 °F) to half-brightness, backlight is not replaceable

Product Line：Panelview Plus 7

Input Type：Touchscreen

Display Color：TFT Color Display

Memory：512 Mb

Input Voltage：24 VDC

Backlight：LED

Weight：8.14 LBS

Description:

The 2711P- T15C22D8 is a PanelView Plus 7 Standard operator terminal from Allen-Bradley. This operator interface is also referred to as Human Machine Interface (HMI) device that features 15-inch, colored TFT LCD screen, embedded analog resistive touchscreen input and dual Ethernet communication port.

The 2711P- T15C22D8S is a cost-effective solution for implementing real-time process and machine visualization and control in the factory-floor area of the plant. It is equipped with modern capabilities that help meet today’s plant automation and connectivity demands. This device is carries certifications from IECEx, CCC Ex, cULus, ATEX, INMETRO, CE (EMC), CE (LVD), RCM, EAC, RoHS and KCC. It is installed to an enclosure rated NEMA and UL Type 12, 13, 4X (indoor use only), also rated IP54 or IP66 as Classified by UL.

FAQ & Contact:

Q: Are you a trading company or a manufacturer?

A: We are a trading company.

Q: What is your lead time?

A: It usually takes one to three days if we have it in stock. If the goods are not in stock, you need to negotiate.

Q: Does your company provide samples? Is it free or do you charge extra?

A: It depends on the goods you need and the quantity you order.

Q: What are your terms of payment?

A: 100%  T/T before shipping. If the quantity is large, we can negotiate.
