Allen Bradley 2711P-T12C6A1 PowerFlex

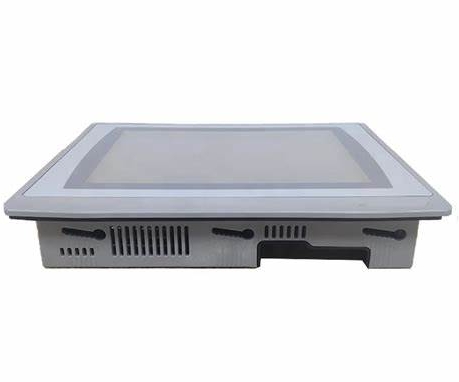

The Allen-Bradley 2711P-T12C6A1 is a PanelView Plus 1250 operator terminal terminal. This Human Machine Interface (HMI) device is powered by an external supply voltage of 85-264 VAC. It has a 12.1-inch Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD) with embedded Touchscreen operator interface. It has a variety of communication ports such as One (1) Data Highway Plus (DH+), One (1) Remote I/O (RIO), One (1) DH485, One (1) Ethernet, One (1) RS-232 and Two (2) USB ports.
Technical specifications for 2711P-T12C6A1
Brand:Allen-Bradley
Display Type:Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD)
Display Size:12.1 inches
Part Number/Catalog No.:2711P-T12C6A1
Manufacturer:Rockwell Automation / Allen-Bradley
Product Family:PanelView Plus Graphic Terminals
Operator Input:Touch
Display Area:246 x 184 mm (9.7 x 7.2 in.)
Resolution:800 x 600
Touch input:Analog Resistive; 1 million presses
System Memory:64MB / 64MB
Communication ports:Data Highway Plus (DH+), Remote I/O (RIO), DH485, Ethernet, RS-232, DH485, 2 USB
Input Voltage range:85…264V ac, 47…63 Hz
Power Consumption:160V A max, 65 VA typical
Weight:3.4 kg (7.6 lb)
Temperature, operating:0…55 °C (32…131 °F)
Heat dissipation:240 BTU/hr
Shock, operating:15 g at 11 ms
Product Line:Panelview Plus 1250
Input Type:Touchscreen
Communication:DH+/RIO/DH-485
Input Power:85-264 Volts AC
Memory:64 Megabytes
Shipping Dimensions:11.12 x 14.3 x 2.17 inches
Product Lifecycle Status*:Discontinued/Obsolete
Description
The Allen-Bradley 2711P-T12C6A1 is a PanelView Plus 1250 operator terminal. This operator terminal is ideally used for medium to larger applications as it is designed with adequate display area for providing detailed process mimic and support for a wide variety of communication ports.
The 2711P-T12C6A1 specifically has a 12.1-inch Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD) coupled with a field replaceable CCFL backlight that is designed to operate at a minimum lifespan of 50,000 hours. The screen has a resolution of 800 x 600 pixels with display size of 246 x 184 mm (9.7 x 7.2 in.). The luminance of the display screen is rated 300 cd/m2 Nits.
The 2711P-T12C6A1 comes with a built-in touch sensitive screen. The touch cells are embedded within the display screen which permits any user to directly interact with objects published in the runtime environment of the device.
