Allen Bradley 2711P-T12C4D8 PowerFlex

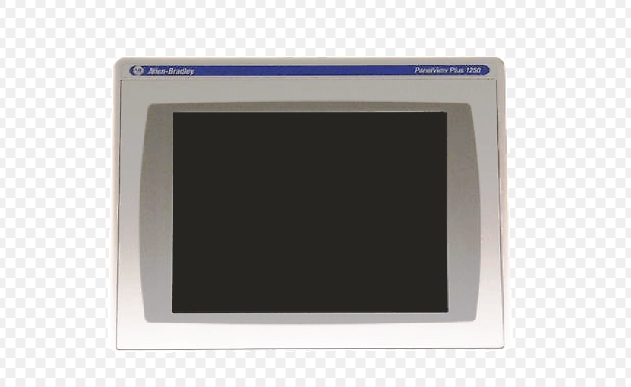

The Allen-Bradley 2711P-T12C4D8 is a Panelview Plus 6 1250 Operator Terminal. This operator terminal is powered by an external 18-30VDC supply voltage and has a 12.1-inch colored display with embedded Ethernet, RS232, and Two (2) USB communication port. This operator terminal has a touchscreen input interface.
Technical specifications for 2711P-T12C4D8
Display Area246 x 184 mm (9.7 x 7.2 in.)
BacklightCCFL, 50,000 hours min at 25 ° C (77 °F), field replaceable
Display Size12.1 inches
Display TypeColor active-matrix TFT
Product TypePanelView Plus 6 1200 Operator Terminals
BrandAllen-Bradley
Manufacturer:Rockwell Automation
Product Family:PanelView Plus 6 Operator Terminals
Operator Input:Touch
Lifecycle status:End of life
Touch:1 million presses
Internal memory:512MB Flash Memory / 512 MB Random Access Memory
Integrated ports:Ethernet, RS-232, 2 USB host
Input Voltage range:18-30VDC
Part Number/Catalog No.2711P-T12C4D8
Product LinePanelview 6 Plus
Input TypeTouchscreen
Input Power18 to 32 Volts DC
Memory512 MB RAM
Communication Cable2711-NC13
Shipping Weight10 pounds
Shipping Dimensions20 x 14 x 8 inches
SeriesSeries A and Series B
CommunicationEthernet and RS-232
Display Resolution800 x 600, 18-bit color graphics
Real Time Clock (Battery)2711P-RY2032 (CR2032)
Product Weight7 Lbs.
Product Dimensions11.12 x 14.30 x 2.18 in. (282 x 363 x 55 mm)
Cutout Dimensions10.11 x 13.29 in. (257 x 338 mm)
Logic Module2711P-RP8D
Display Module2711P-RDT12C
Description
The PanelView Plus 6 operator terminal with catalog number 2711P-T12C4D8 belongs to the sub-category PanelView Plus 6 1250 operator terminal. This operator terminal is more commonly known as Human Machine Interface (HMI) that is used to provide process and machine operators with a centralized monitoring and control point of the system. This controls to a more accurate, efficient and responsive control and lessens the risk of human operational errors.
This electronic device is powered by an external voltage range of 18-30VDC. It also comes with an integrated memory of 512MB Random Access Memory (RAM) and 512 MB Flash Memory. The internal memories cannot be upgraded however, may be installed with memory expansion devices such as 1784-SD1 and 1784-SD2 Secure digital cards. It may also be installed with external flash drive for removable storage.
