Allen Bradley 2711P-T7C4D8 PowerFlex

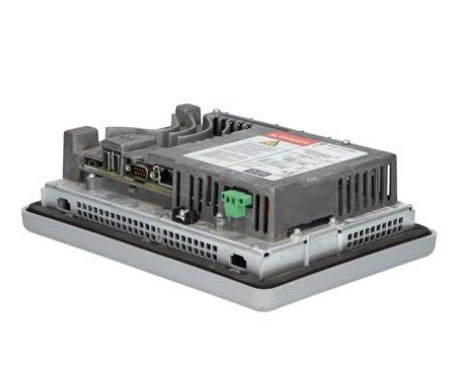

The Allen-Bradley 2711P-T7C4D8 is a PanelView Plus 6 700 Operator Terminal. This operator terminal is powered by an external 18-30VDC supply voltage and has a 6.5-inch colored display with embedded Ethernet, RS232, and Two (2) USB communication port. This operator terminal has a touchscreen input interface.
Technical specifications for 2711P-T7C4D8
BacklightCCFL, 50,000 hours min at 25 ° C (77 °F), field replaceable
Display Size10.4 in. inches
BrandAllen-Bradley
Manufacturer:Rockwell Automation
Product Family:PanelView Plus 6 Operator Terminals
Product Type:PanelView Plus 6 700 Operator Terminals
Operator Input:Touch
Display Type:Color active-matrix TFT
Lifecycle status:End of life
Display Area:132 x 99 mm (5.2 x 3.9 in.)
Resolution:640 x 480, 18-bit color graphics
Touch:Analog Resistive
Internal memory:512MB Flash Memory / 512 MB Random Access Memory
Integrated ports:Ethernet, RS-232, 2 USB host
Input Voltage range:18-30VDC
Part Number/Catalog No.2711P-T7C4D8
Product LinePanelview 6 Plus
Display ColorColor
Input TypeTouchscreen
CommunicationEthernet and RS-232
Input Power18 to 32 Volts DC
Memory512 MB RAM
Communication Cable2711-NC13
Shipping Weight8 pounds
Shipping Dimensions14 x 11 x 8 inches
SeriesSeries A and Series B
Logic Module2711P-RP8D
Description
The Allen-Bradley 2711P-T7C4D8 is a PanelView Plus 6 Graphic operator terminal. This operator terminal is a visualization component that is used to provide a graphical interface intended for machines and processes. This operator terminal enables an intuitive monitoring and control interface via the assembly of logic and display modules which contain the core components of this Human Machine Interface (HMI) device.
The 2711P-T7C4D8 provides a colored graphic display via the 6.5-inch screen with viewing area of 132 x 99 mm (5.2 x 3.9 in.) and pixel resolution of 640 x 480 in 18-bit color graphics. Users are able to see a color-coded graphic display that is commonly used to depict a material flowing inside a pipe or stored in a vessel, area marker for typical production lines as well as status of instruments and devices. Operator interacts to the process via the analog-resistive touchscreen input interface that is designed to be operated up to 1 million actuations with an actuation force of 10-110 g.
