Allen Bradley 2711P-T15C4D1 PowerFlex

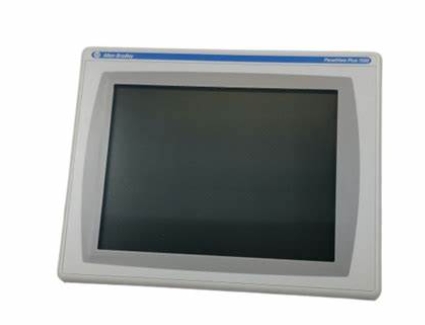

The Allen-Bradley 2711P-T15C4D1 is a Panelview Plus 1500 Operator Terminal. This operator terminal is powered by an external 18-32VDC supply voltage and has a 15.0 inch colored display with embedded RS232 and Ethernet communication ports. This operator terminal has a Touchscreen input interface.
Technical specifications for 2711P-T15C4D1
Display TypeColor active matrix, thin-film transistor (TFT) with liquid crystal display (LCD)
BrandAllen-Bradley
Manufacturer:Rockwell Automation
Product Family:PanelView Plus Operator Terminals
Product Type:PanelView Plus 1500 Operator Terminals
Part Number:2711P-T10C4D1
Operator Input:Touch
Lifecycle status:Discontinued
Backlight:CCFL 50,000 hours life, min.
Display Size:15.0 inches
Display Area:304 x 228 mm (12.0 x 9.0 in.)
Resolution:1024 x 768
Toiuchscreen:1 million presses
Actuation force:10-110 g
Internal memory:64MB Flash Memory / 64MB Random Access Memory
Integrated ports:Ethernet, Data Highway Plus (DH+), Remote I/O (RIO), DH485, RS232, USB communication ports.
Input Voltage range:18-32VDC
Part Number/Catalog No.2711P-T15C4D1
SeriesPanelview Plus 1500
Input MethodTouchscreen Input
Communicaion PortsStandard Communication Ethernet, USB, RS-232
Power24 Volts DC Input
Features64 MB
Logic Module2711P-RP1
Display Module2711P-RDT15C
CompactFlash Card2711P-RW1 (32MB)
Description
The 2711P-T15C4D1 is a Human Machine Interface (HMI) devide that is part of Allen-Bradley’s obsolete PanelView Plus operator terminals. The 2711P-T15C4D1 is specifically part of the sub-category PanelView Plus 1500 operator terminal. It features a 15-inch colored display screen with resolution of 1024 x 768. Through the display screen, user or operator is able to monitor the process from a centralized, convenient location in the factory floor area. The 2711P-T15C4D1 is operated via the analog resistive touch screen with 1 million presses lifespan. This touchscreen interface permits direct interaction to the runtime icons and objects.
The 2711P-T15C4D1 display and touch interface made up the display module. This display module is replaceable, providing an option for any PanelView user to replace the module rather than replacing the entire unit.
