Allen Bradley 2711P-T10C4D8 PowerFlex 700 Brand new

Allen Bradley  2711P-T10C4D8   PowerFlex

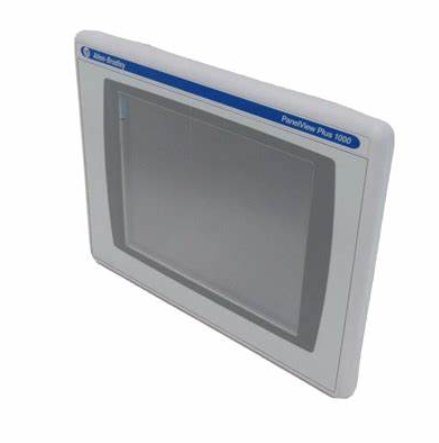

The Allen-Bradley 2711P-T10C4D8 is a Panelview Plus 6 1000 Operator Terminal. This operator terminal is powered by an external 18-30VDC supply voltage and has a 10.4-inch colored display with embedded Ethernet, RS232, and Two (2) USB communication port. This operator terminal has a touchscreen input interface.

Technical specifications for 2711P-T10C4D8

Backlight：CCFL, 50,000 hours min at 25 ° C (77 °F), field replaceable

Product Type：PanelView Plus 6 1000 Operator Terminals

Display Size：10.4 in. inches

Brand：Allen-Bradley

Manufacturer:Rockwell Automation

Product Family:PanelView Plus 6 Operator Terminals

Operator Input:Touch

Display Type:Color active-matrix TFT

Lifecycle status:End of life

Display Area:211 x 158 mm (8.3 x 6.2 in.)

Resolution:640 x 480, 18-bit color graphics

Touch:Analog Resistive

Internal memory:512MB Flash Memory / 512 MB Random Access Memory

Integrated ports:Ethernet, RS-232, 2 USB host

Input Voltage range:18-30VDC

Part Number/Catalog No.：2711P-T10C4D8

Display Color：Color

Input Type：Touchscreen

Communication：Ethernet and RS-232

Input Power：18 to 32 Volts DC

Memory：512 MB RAM

Communication Cable：2711-NC13

Shipping Weight：8 pounds

Shipping Dimensions：16 x 14 x 8 inches

Series：Series A and Series B

Description:

The 2711P-T10C4D8 is an Allen-Bradley PanelView 6 Plus 1000 Series terminal. The 2711P-T10C4D8 is an operator interface that allows users to monitor, manage, and display application status information. The 2711P-T10C4D8 uses modular components that allow for flexible configuration, installation, and upgrades. This factory-assembled terminal has both a display module and a logic module. As indicated by the part number of this unit, it has a touchscreen input. It has a 10.4-inch color TFT display with resolution of 640 x 480 pixels an 18-bit color graphics. The display has a brightness of 300 cd/m2 (Nits).
