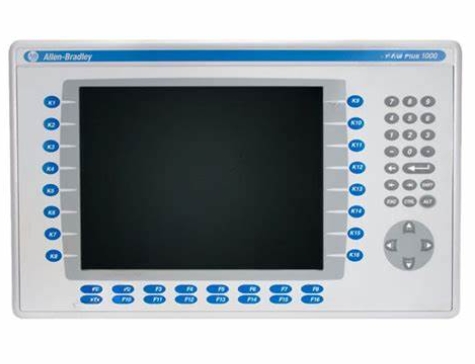

Allen Bradley 2711P-K10C15D1 PowerFlex
The Allen-Bradley/Rockwell Automation 2711P-K10C15D1 terminal is a DC-powered operator interface terminal that can control a variety of industrial machines and applications. Its input voltage rating is between 18 and 32 Volts DC. The 2711P-K10C15D1 operator interface terminal has a 10.4-inch display screen that supports full color graphics. The backlight for the display screen is replaceable. The 2711P-K10C15D1 operator interface terminal and its applications can be controlled through the terminals keypad.
Technical specifications for 2711P-K10C15D1
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711P-K10C15D1
Product LinePanelview Plus 1000
Display Size10.4 in.
Display ColorColor
Input TypeKeypad
CommunicationControlNet
Input Power18-32 VDC
Memory64 MB
Backlight2711P-RL10C
Communication Cable1747-KFC15A
Shipping Weight10 lbs.
Shipping Dimensions18 x 14 x 8 in
SeriesSer A, B, C, D, and F
Product Lifecycle Status*Discontinued/Obsolete
Description
The obsolete Allen Bradley Panelview Plus 1000 2711P-K10C15D1 is an operator terminal that allows the user to interface with their machine. This HMI has a 10.4 in. Color Display screen. The user is able to control the operator terminal using the Keypad to input information and data. This unit is powered using 18-32 VDC power. This Panelview Plus has the following internal memory: 64 MB. This unit has an internal backlight replacement part number of 2711P-RL10C. The approximate shipping weight and dimensions are 10 lbs. and 18 x 14 x 8 in. The most common Series are: Ser A, B, C, D, and F. The ControlNet terminals are able to connect to single or multiple controllers on a unique ControlNet network. They support both scheduled and unscheduled access to controller data, as well as support for redundant cabling. The ControlNet terminals support symbolic CIP addressing when communicating with a ControlLogix system. Every terminal offers a Network Access port for local access to the ControlNet network.
