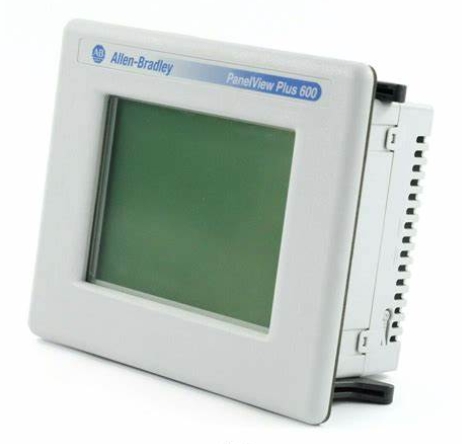

Allen Bradley 2711P-T6M5D PowerFlex
This Panelview Plus 600 has a 5.7-in.Grayscale display. This HMI can be operated with the touchscreen and is powered with 24 VDC.
Technical specifications for 2711P-T6M5D
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711P-T6M5D
SeriesPanelView Plus 600
Module TypeOperator Interface Terminal
Input TypeTouchscreen
Power Supply24 Volts DC
CommunicationRS-232, USB ports
Display5.7-inch Monochrome
Product Lifecycle Status*Discontinued/Obsolete
Description
The Allen-Bradley/Rockwell Automation 2711P-T6M5D terminal is a PanelView grayscale terminal. Because it is a grayscale terminal, the 2711P-T6M5D terminal supports a fixed palette of 4 colors which are all shades of gray. The terminal is capable of displaying, controlling, and monitoring an application. For communication purposes, the 2711P-T6M5D terminal features an RS-232 port and a high-speed USB port. Note that the RS-232 port supports multiple vendor PLC protocols. As such, the 2711P-T6M5D terminal can be used for both basic and high-end applications. The terminal displays information on a 5.7-inch display. The Allen-Bradley 2711P-T6M5D terminal has an internal memory unit with a 64 MB capacity and it is powered by a DC power source with a nominal voltage rating of 24 Volts DC (with a minimum rating of 18 Volts DC, and a maximum rating of 30 Volts DC). However, for earth/ground functional connections, a separate power source has to be provided.
FAQ & Contact:
Q: Are you a trading company or a manufacturer?
A: We are a trading company.
Q: What is your lead time?
A: It usually takes one to three days if we have it in stock. If the goods are not in stock, you need to negotiate.
Q: Does your company provide samples? Is it free or do you charge extra?
A: It depends on the goods you need and the quantity you order.
Q: What are your terms of payment?
A: 100% T/T before shipping. If the quantity is large, we can negotiate.
