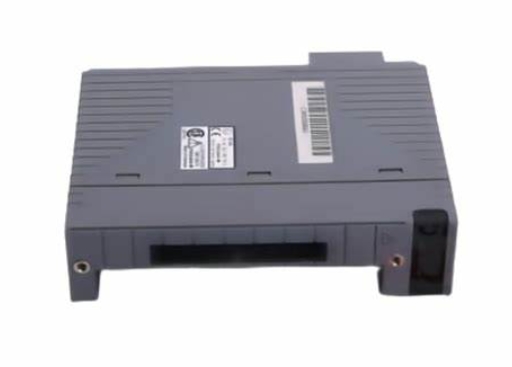

Yokogawa AAV544-S00 Analog Input/Output Module
The AAV544-S00 is an Analog Output Module designed for delivering -10 to+10 V signals across 16 isolated output channels. This module supports dual.redundant configurations, making it suitable for applications requiringreliable and accurate voltage outputs in industrial environments.
Technical specifcations for AAV544-S00
Model: AAV544-S00
Suffix Codes:
-S: Standard type
-5: With no explosion protection
-E: With explosion protection
-0: Basic type
-3: With lSA Standard G3 option and temperature (-20 to 70 °C) option
Option Codes:
/K4A00: With KS Cable Interface Adapter [Model: ATK4A-00]
/A4S00: With Pressure Clamp Terminal Block for Analog [Model: ATA4S00]
/A4S10: With Pressure Clamp Terminal Block for Analog (surgeabsorber)[Model: ATA4S-10]
/A4D00: With Dual Pressure Clamp Terminal Block for Analog [Model:ATA4D-00]
/A4D10: With Dual Pressure Clamp Terminal Block for Analog(surgeabsorber) [Model: ATA4D-10]
/CCC01: With Connector Cover for MlL Cable [Model: ACCC01]
Weight and Dimensions
Weight: 0.2 kg
Dimensions:130 mmx107.5 mmx32.8 mm
Features
Number of Output Channels: 16,isolated
Output signal: -10 to +10 V
Withstanding Voltage: 1500 V AC between output and system, for 1 minute
Allowable Load Resistance: 5 kΩ or larger
Accuracy:The larger of ±12 mV or ±0.3 % FS
eData Update Period:10 ms
Drift Due to Ambient Temperature Change: The larger of ±0.1 %/10 ℃ or±10 mV/10℃
Maximum Current Consumption: 860 mA (5 V DC)
External Communication: Pressure clamp terminal, MlL connector cable.dedicated cable(KS1)
