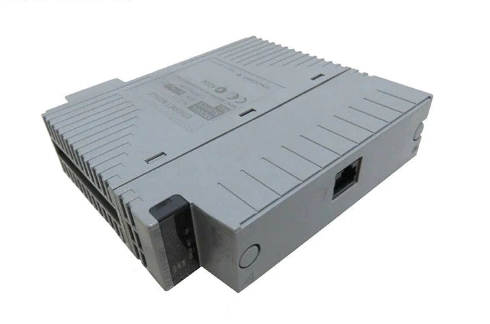

Yokogawa AAV142-S00 Analog Input Module
The YOKOGAWA AAV142-S00 is an Analog Input Module designed to handle awide range of voltage signals, from -l0 to +10 V DC. This module features 16non-isolated input channels and is ideal for applications requiring accurateand reliable voltage measurements.lt supports dual-redundantconfigurations,enhancing system reliability in critical industrialenvironments.
Technical specifcations for AAV142-S00
Model: AAV142-S00
eInput signal: -10 to +10 V DC
Allowable Input Voltage: ±13 V
Input Resistance:
Power ON: l MΩ or larger
Power OFF: 660 kΩ or larger
Accuracy: ±20 mV
Data Update Period: 10 ms
Step Response Time: l00 ms
Drift Due to Ambient Temperature Change: +20 mV/10°C
Maximum Current Consumption: 350 mA (5 V DC)
External Connection: KS cable
Weight: 0.2 kg
Dimensions:130 mmx107.5 mmx 32.8 mm
Option Codes
/K4A00: With Ks Cable Interface Adapter [Model: ATK4A-00]
/A4S00: With Pressure Clamp Terminal Block for Analog [Model: ATA4S-00]
/A4S10: With Pressure Clamp Terminal Block for Analog (surge absorber)[Model: ATA4S-10]
/A4D00: With Dual Pressure Clamp Terminal Block for Analog [Model:ATA4D-00]
/A4D10: With Dual Pressure Clamp Terminal Block for Analog (surgeabsorber)[Model: ATA4D-10]
/CCC01: With Connector Cover for MlL Cable [Model: ACCC01]
