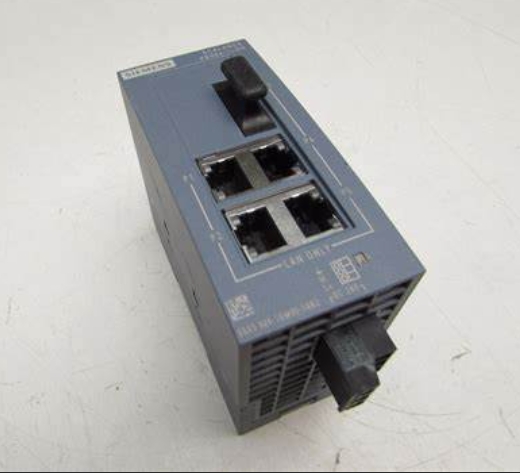

Siemens 6GK5004-1GM00-1AB2 SCALANCE XB004-1LDG
SCALANCE XB004-1LDG unmanaged Industrial Ethernet Switch for 10/100/1000 Mbit/s; for setting up small star and line topologies; LED diagnostics, IP20, 24 V DC power supply, with 4x 10/100/1000 Mbit/s RJ45 Ports electrical and 1 x 1000 Mbit/s SC port optical (single-mode, glass), up to max. 10 km Manual available as a download
Technical specifcations for 6GK5004-1GM00-1AB2
Transmission rate
Transfer rate / 1: 10 Mbit/s
Transfer rate / 2: 100 Mbit/s
Transfer rate / 3: 1000 Mbit/s
Interfaces
Number of electrical/optical connections / for network components or terminal equipment / maximum: 5
Number of electrical connections
• for network components and terminal equipment: 4
• for power supply: 1
Design of electrical connection
• for network components and terminal equipment: RJ45 port
• for power supply: 3-pole terminal block
Number of optical interfaces / for optical waveguide
• at 1000 Mbit/s: 1
Design of optical interface / for optical waveguide
• at 1000 Mbit/s: SC port (singlemode up to 10 km)
Connectable optical power relative to 1 mW
• of the transmitter output: -9.5 … -3 dB
• of the receiver input / maximum: -3 dB
Optical sensitivity relative to 1 mW / of the receiver input / minimum: -21 dB
Attenuation / of fiber-optic cable transmission link / minimum necessary: 0 dB
Range / at the optical interface / depending on the optical fiber used: 0 … 10 km
Supply voltage, current consumption, power loss
Type of voltage / of supply voltage: DC
Supply voltage / external: 24 V
• minimum: 19.2 V
• maximum: 28.8 V
Product component / fusing at power supply input: Yes
Consumed current / maximum: 0.52 A
Active power loss / at 24 V / for DC: 12.5 W
Permitted ambient conditions
Ambient temperature
• during operating: -10 … +60 °C
• during storage: -40 … +80 °C
• during transport: -40 … +80 °C
Relative humidity
• at 25 °C / without condensation / during operating / maximum: 95 %
Protection class IP: IP20
Design, dimensions and weight
Design: Box
Width: 45 mm
Height: 100 mm
Depth: 87 mm
Net weight: 0.21 kg
Type of mounting
• 35 mm DIN rail mounting: Yes
• wall mounting: Yes
