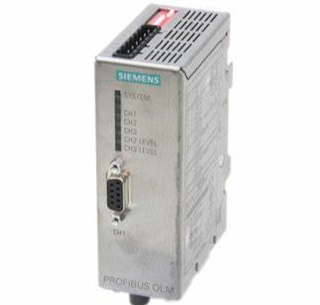

Siemens 6GK1503-2CB00 PROFIBUS OLM/G11 V4.0
PROFIBUS OLM/G11 V4.0 optical link module with 1 RS 485 and 1 glass fiber optic cable interface (2 BFOC sockets), with signaling contact and test port
Technical specifcations for 6GK1503-2CB00
Transfer rate
transfer rate / with PROFIBUS: 9.6 kbit/s ... 12 Mbit/s
transfer rate / with PROFIBUS PA: 45.45 kbit/s
Interfaces
number of electrical/optical connections / for network components or terminal equipment / maximum: 2
number of electrical connections
● for network components or terminal equipment: 1
● for measuring device: 1
● for signaling contact: 1
● for power supply: 1
● for redundant voltage supply: 1
type of electrical connection
● for network components or terminal equipment: 9-pin Sub-D socket
● for measuring device: 2-pole terminal block
● for power supply and signaling contact: 5-pole terminal block
number of optical interfaces / for fiber optic cable: 1
design of the optical interface / for fiber optic cable: BFOC port
Optical data
attenuation factor / of the FOC transmission link
● for glass FOC with 50/125 µm / at 3 dB/km / maximum: 10 dB
● for glass FOC with 62.5/125 µm / at 3.5 dB/km / maximum: 12 dB
propagation delay [bit]: 6.5 bit
connectable optical power relative to 1 mW
● for glass FOC with 50/125 µm / at 3 dB/km: -16 dB
● for glass FOC with 62.5/125 µm / at 3.5 dB/km: -13 dB
optical sensitivity relating to 1 mW
● for glass FOC with 50/125 µm / at 3 dB/km: -28 dB
● for glass FOC with 62.5/125 µm / at 3.5 dB/km: -28 dB
wire length
● for glass FOC with 50/125 µm / at 3 dB/km / maximum: 3 km
● for glass FOC with 62.5/125 µm / at 3.5 dB/km / maximum: 3 km
Signal inputs/outputs
operating voltage / of the signaling contacts / at DC / rated value: 24 V
operational current / of the signaling contacts / at DC / maximum: 0.1 A
Supply voltage, current consumption, power loss
type of voltage / of the supply voltage: DC
supply voltage / at DC / rated value: 24 V
supply voltage / at DC: 18.8 ... 28.8 V
product component / fusing at power supply input: Yes
consumed current / at DC / at 24 V / maximum: 0.2 A
Ambient conditions
ambient temperature
● during operation: 0 ... 60 °C
● during storage: -40 ... +70 °C
● during transport: -40 ... +70 °C relative humidity
● at 25 °C / without condensation / during operation / maximum: 95 %
protection class IP: IP40
Design, dimensions and weights
design: compact
width: 39.5 mm
height: 112 mm
depth: 74.5 mm
net weight: 340 g
