Siemens 6FX5002-5CN01-1BF0 electric cable

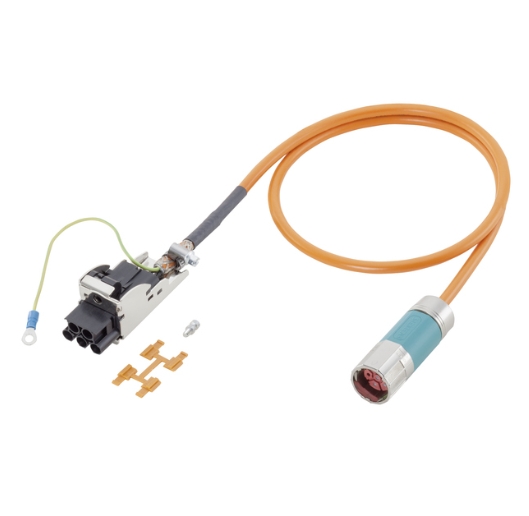

Siemens 6FX5002-5CN01-1BF0 Pre-assembled power cable

cordset with M23 connector for field assembly - Siemens (MOTION-CONNECT series) - DESINA (11.5mm cable outer sheath diameter diameter) - Plug-in connector + Crimped end flying leads - 15m length - 4x1.5mm2 - Equivalent to 6FX50025CN011BF0

Technical specifcations for 6FX5002-5CN01-1BF0

Electrical data

No. of cores x cross-section mm²: 4x1.5 C

Test voltage, rms Power conductors: 4.0 kV

Test voltage, rms Signal conductors: 2.0 kV

Type with braking lead: No

Rated voltage vO'y according to EN 50395: 600 V11000 V

Mechanical data

Type of connection cable engine side: ConectOr SPEED-CONNECT

Connector size: 1/M23

Type of bolting: not relevant

Type of connection cable converter side: Connector SlNAMlCs S120 Booksize MoMo

Maximum cable outer diameter: 8.4 mm

Length: 15.0 m

Weight (without connector):1.8 kg

Static deployment

Smallest bending radius (fixed installation): 21.0 mm

Tensile load for permanently installed cable, max: 50 NImm2(7252 lbf/in²)

Torsional stress: Absolute 30°/m

Dynamic deployment

Smallest bending radius(flexible installation in a cable carriers): 155.0 mm

Acceleration horizontal, max: 2 m/s²

Maximum traversing velocity: 30 m/min

Travel path: 5 m

Number of bends, max: 100.000

Tensile load for moving cable, max: 20 N/mm²(2901 lbf/in²)

Technical data

Ambient temperature

Operation with permanently installed cable: 20 ... 80°C Module end power connector O ... 55°C

Operation with moving cable: 0...60℃ Module end power connector O ... 55°C

Storage: -20 ... 80°C Module end power connector -20 ... 70°C

Kind of connection cable: Basis cable

Material of the cable sheath: PVC DESINA color orange RAL 2003

Type of insulation: CFCisilicone.free

Standard for behavior in fire flame resistance: EN 60332-1-1 t0 1-3

Oil resistance: EN 60811-2-1 (mineral oil only)

Verification of suitability as authorisation for USA: UL758

Verification of suitability as authorisation for Canada: CSA-C22.2-N.210.2-M90
