Siemens 6AG1516-3FN02-2AB0 CPU

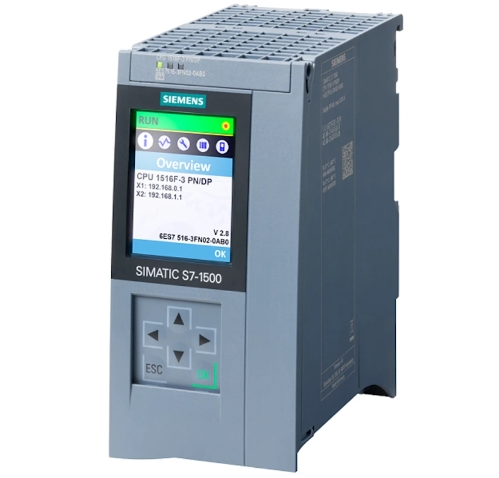

Siemens 6AG1516-3FN02-2AB0 CPU 1516F-3 PN/DP SIPLUS S7-1500

SIPLUS S7-1500 CPU 1516F-3 PN/DP based on 6ES7516-3FN02-0AB0 with conformal coating, -40...60 ℃, central processing unit with work memory 1.5 MB for program and 5 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface: PROFINET RT, 3rd interface: PROFIBUS, 10 ns bit performance, SIMATIC Memory Card required

Technical specifcations for 6AG1516-3FN02-2AB0

Display

Screen diagonal [cm]: 6.1 cm

Control elements

Number of keys: 8

Mode buttons: 2

Supply voltage

Rated value (DC): 24 V

permissible range, lower limit (DC): 19.2 V

permissible range, upper limit (DC): 28.8 V

Reverse polarity protection: Yes

Mains buffering

● Mains/voltage failure stored energy time: 5 ms

● Repeat rate, min. 1/s

Input current

Current consumption (rated value): 0.85 A

Current consumption, max: 1.1 A

Inrush current, max: 2.4 A; Rated value

I²t: 0.02 A²·s

Power

Infeed:power to the backplane bus: 12 W

Power consumption from the backplane bus (balanced): 6.7 W

Power loss

Power loss, typ: 7 W

Memory

Number of slots for SIMATIC memory card: 1

SIMATIC memory card required: Yes

Work memory

● integrated (for program): 1.5 Mbyte

● integrated (for data): 5 Mbyte

Load memory

● Plug-in (SIMATIC Memory Card), max: 32 Gbyte

Backup

● maintenance-free: Yes

CPU processing times

for bit operations, typ: 10 ns

for word operations, typ: 12 ns

for fixed point arithmetic, typ: 16 ns

for floating point arithmetic, typ: 64 ns

CPU-blocks

Number of elements (total): 8 000; Blocks (OB, FB, FC, DB) and UDTs

Nesting depth

● per priority class: 24; Up to 8 possible for F-blocks

Data areas and their retentivity

Retentive data area (incl. timers, counters, flags), max: 512 kbyte; In total; available retentive memory for bit memories, timers, counters, DBs, and technology data (axes): 472 KB

Extended retentive data area (incl. timers, counters, flags), max.: 5 Mbyte; When using PS 6 0W 24/48/60 V DC HF

Flag

● Size, max: 16 kbyte

● Number of clock memories: 8; 8 clock memory bit, grouped into one clock memory byte

Data blocks

● Retentivity adjustable: Yes

● Retentivity preset: No

Local data

● per priority class, max: 64 kbyte; max. 16 KB per block

Address area

Number of IO modules: 8 192; max. number of modules / submodules

I/O address area

● Inputs: 32 kbyte; All inputs are in the process image

● Outputs: 32 kbyte; All outputs are in the process image

per integrated IO subsystem

— Inputs (volume): 8 kbyte

— Outputs (volume): 8 kbyte

per CM/CP

— Inputs (volume): 8 kbyte

— Outputs (volume): 8 kbyte

Subprocess images

● Number of subprocess images, max: 32

Interfaces

Number of PROFINET interfaces: 2

Number of PROFIBUS interfaces: 1

Dimensions

Width: 70 mm

Height: 147 mm

Depth: 129 mm

Weights

Weight, approx: 560 g
