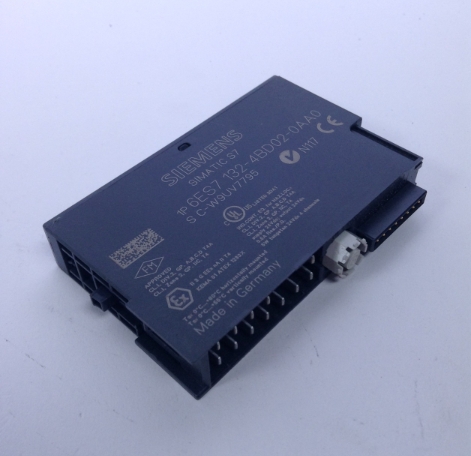

Siemens 6ES7132-4BD02-0AA0 4 DO ST 24VDC/0.5A SIMATIC DP ET200S

SIMATIC DP, 5 electronic modules for ET 200S, 4 DO standard 24 V DC/0.5 A, 15 mm width, 5 units per packing unit.

Technical specifcations for 6ES7132-4BD02-0AA0

Product Line: SIMATIC DP, ET200S, El-Mod., 4DO ST,DC24V, 0.5A, 5pcs

Number of Digital Outputs (DO): 4 DO standard 24 V DC/0.5 A

Power Supply: 24 V DC

Dimensions (WxHxH): 15 x 81 x 52 mm

Weight: 40 g

Supply voltage

Reverse voltage protection: Yes; when using the same load voltage as on the power module

Load voltage L+

● Rated value (DC): 24 V; From power module

● Reverse polarity protection: Yes; polarity reversal can lead to the digital outputs being connected through

Input current

from load voltage L+ (without load), max: 10 mA; Per channel

from backplane bus 3.3 V DC, max: 10 mA

Power loss

Power loss, typ: 0.8 W

● Address space per module, max: 1 byte

● with packing: 4 bits

Digital outputs

Type of digital output: Source output (PNP, current-sourcing)

Number of digital outputs: 4

Short-circuit protection: Yes

● Response threshold, typ: 1 to 1.5 A

Limitation of inductive shutdown voltage to: L+ (-55 to -60 V)

Controlling a digital input: Yes

Switching capacity of the outputs

● On lamp load, max: 5 W

Load resistance range

● lower limit: 48 Ω

● upper limit: 3 400 Ω

Output voltage

● for signal "1", min: L+ (-1 V)

Output current

● for signal "1" rated value: 0.5 A

● for signal "1" permissible range, min: 7 mA

● for signal "1" permissible range, max: 600 mA

● for signal "0" residual current, max: 0.3 mA

Output delay with resistive load

● "0" to "1", max: 50 μs

● “1” to “0”, max: 120 µs

Parallel switching of two outputs

● for uprating: Full

● for redundant control of a load: Yes; per module

Switching frequency

● with resistive load, max: 800 Hz

● with inductive load, max: 2 Hz

● on lamp load, max: 10 Hz

Total current of the outputs

● Current per module, max: 2A

Cable length

● shielded, max: 1 000 m

● unshielded, max: 600 m

Interrupts/diagnostics/status information

Diagnostics function: Full

Diagnostics indication LED

● Digital output indicator status (green): Yes

Parameters

Remark: 1 byte

Potential separation digital outputs

● between the channels: Full

● between the channels and backplane bus: Yes

Isolation

Isolation tested with: 500 V DC

Dimensions

Width: 15 mm

Height: 81 mm

Depth: 52 mm

Weights

Weight, approx: 40 g
