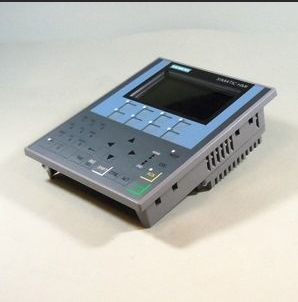

Siemens 6AV2124-1DC01-0AX0 SIMATIC HMI KP400 Comfort
SIMATIC HMI KP400 Comfort, Comfort Panel, key operation, 4" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 4 MB configuration memory, Windows CE 6.0, (Microsoft Support included Security updates discontinued) configurable from WinCC Comfort V11
Technical specifcations for 6AV2124-1DC01-0AX0
Display
Design of display: TFT
Screen diagonal: 4.3 in
Display width: 95 mm
Display height: 53.8 mm
Number of colors: 16777216
Resolution (pixels)
● Horizontal image resolution: 480 pixel
● Vertical image resolution: 272 pixel
Backlighting
● MTBF backlighting (at 25 °C):80 000 h
● Backlight dimmable: Yes;0-100%
Control elements
Keyboard fonts
● Numeric keyboard: Yes;
● alphanumeric keyboard: Yes; similar to mobile phone
Touch operation
● Design as touch screen: No
Supply voltage
Type of supply voltage: DC
Rated value (DC): 24 V
permissible range, lower limit (DC): 19.2 V
permissible range, upper limit (DC): 28.8 V
Input current
Current consumption (rated value): 0.13 A
Starting current inrush I²t: 0.5 A²·s
Power
Active power input, typ: 3.1 W
Processor
Processor type: ARM
Memory
Flash: Yes
RAM: Yes
Memory available for user data: 4 Mbyte
Ambient conditions
Ambient temperature during operation
● Operation (vertical installation)
— For vertical installation, min: 0 °C
— For vertical installation, max: 50 °C
● Operation (max. tilt angle)
— At maximum tilt angle, min: 0 °C
— At maximum tilt angle, min: 40 °C
● Operation (vertical installation, portrait format)
— For vertical installation, min: 0 °C
— For vertical installation, max: 40 °C
● Operation (max. tilt angle, portrait format)
— At maximum tilt angle, min: 0 °C
— At maximum tilt angle, min: 35 °C
Ambient temperature during storage/transportation
● min: -20 °C
● max: 60 °C
Relative humidity
● Operation, max: 90 %; no condensation
Dimensions
Width of the housing front: 152 mm
Height of housing front: 188 mm
Mounting cutout, width: 135 mm
Mounting cutout, height: 171 mm
Overall depth: 49 mm
Weights
Weight without packaging: 0.8 kg
Weight incl. packaging: 0.9 kg
