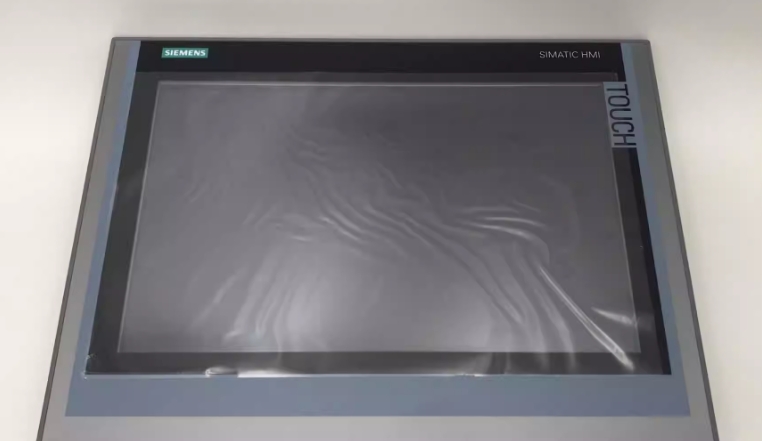

Siemens 6AV2124-0QC02-0AX1 SSIMATIC HMI TP1500 Comfort
SIMATIC HMI TP1500 Comfort, Comfort Panel, touch operation, 15" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 24 MB configuration memory, WEC 2013, configurable as of WinCC Comfort V14 SP1 with HSP, ambient temperature up to 50 °C (up to 55 °C with restrictions)
Technical specifcations for 6AV2124-0QC02-0AX1
Display
Design of display: TFT
Screen diagonal: 15.4 in
Display width: 331.2 mm
Display height: 207 mm
Number of colors: 16777216
Resolution (pixels)
● Horizontal image resolution: 1280 pixel
● Vertical image resolution: 800 pixel
Backlighting
● MTBF backlighting (at 25 °C):80 000 h
● Backlight dimmable: Yes;0-100%
Control elements
Keyboard fonts
● Numeric keyboard: Yes; Onscreen keyboard
● alphanumeric keyboard: Yes; Onscreen keyboard
Touch operation
● Design as touch screen: Yes; Analog-resistive
Supply voltage
Type of supply voltage: DC
Rated value (DC): 24 V
permissible range, lower limit (DC): 19.2 V
permissible range, upper limit (DC): 28.8 V
Input current
Current consumption (rated value): 1.7 A
Starting current inrush I²t: 0.5 A²·s
Power
Active power input, typ: 41 W
Processor
Processor type: X86
Memory
Flash: Yes
RAM: Yes
Memory available for user data: 24 Mbyte
Ambient conditions
Ambient temperature during operation
● Operation (vertical installation)
— For vertical installation, min: 0 °C
— For vertical installation, max: 50 °C; (55 °C, see entry ID: 64847814)
● Operation (max. tilt angle)
— At maximum tilt angle, min: 0 °C
— At maximum tilt angle, min: 40 °C
● Operation (vertical installation, portrait format)
— For vertical installation, min: 0 °C
— For vertical installation, max: 40 °C
● Operation (max. tilt angle, portrait format)
— At maximum tilt angle, min: 0 °C
— At maximum tilt angle, min: 40 °C
Ambient temperature during storage/transportation
● min: -20 °C
● max: 60 °C
Relative humidity
● Operation, max: 90 %; no condensation
Dimensions
Width of the housing front: 415 mm
Height of housing front: 310 mm
Mounting cutout, width: 396 mm
Mounting cutout, height: 291 mm
Overall depth: 75 mm
Weights
Weight without packaging: 4.4 kg
