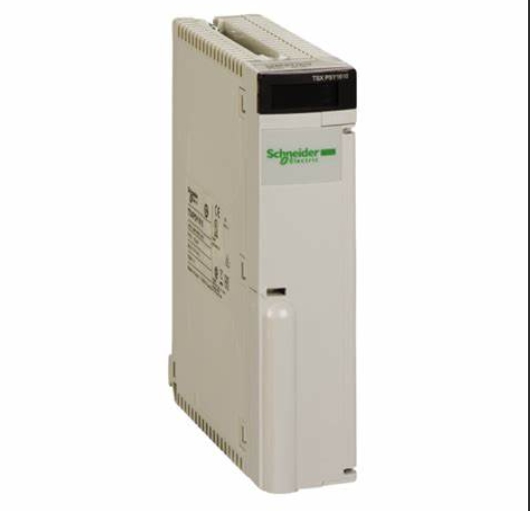

Schneider TSXPSY3610MC Power Supply Module

Schneider TSXPSY3610MC power supply module - 24 V DC - <= 2700 mA - IP20

The Schneider TSXPSY3610MC is a power supply module, specifically a 24V DC power supply, within the Modicon range by Schneider Electric.

Technical specifcations for TSXPSY3610MC

Main

Range of Product: Modicon Premium Automation platform

Product or Component Type: Power supply module

Complementary

Primary voltage: 24 V DC 19.2...30 V

Input current: <= 2700 mA 24 V

Inrush current: 150 A 24 V

I²t on activation: 20 A².s

It on activation: 0.5 A.s

Protection type

Overload protection secondary circuit

Overvoltage protection secondary circuit

Short-circuit protection secondary circuit

Total useful secondary power: 50 W

Secondary power:19 W 24 V DC; 35 W 5 V DC

Current at secondary voltage:0.6 A 24 V DC relay power supply; 7 A 5 V DC

Marking:CE

Local signalling

for presence of voltages (OK) 1 LED (green)

for battery fault (BAT) 1 LED (red)

Module format: Double

Net Weight: 1.72 lb(US) (0.78 kg)

Environment

Immunity to microbreaks: 1 ms

Dielectric strength: 2000 V primary/earth; 2000 V primary/secondary

Standards

CSA C22.2 No 213 Class I Division 2 Group B

CSA C22.2 No 213 Class I Division 2 Group A

73/23/EEC

93/68/EEC

92/31/EEC

CSA C22.2 No 213 Class I Division 2 Group D

CSA C22.2 No 213 Class I Division 2 Group C

89/336/EEC

IEC 61131-2

CSA C22.2 No 142

UL 508

Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)

Ambient Air Temperature for Storage: -13…158 °F (-25…70 °C)

Relative Humidity

10…95 % without condensation for operation

5…95 % without condensation for storage

Operating altitude: 0...6561.68 ft (0...2000 m)

protective treatment: TC; Conformal coating Humiseal 1A33

IP Degree of Protection: IP20

Pollution degree: 2
