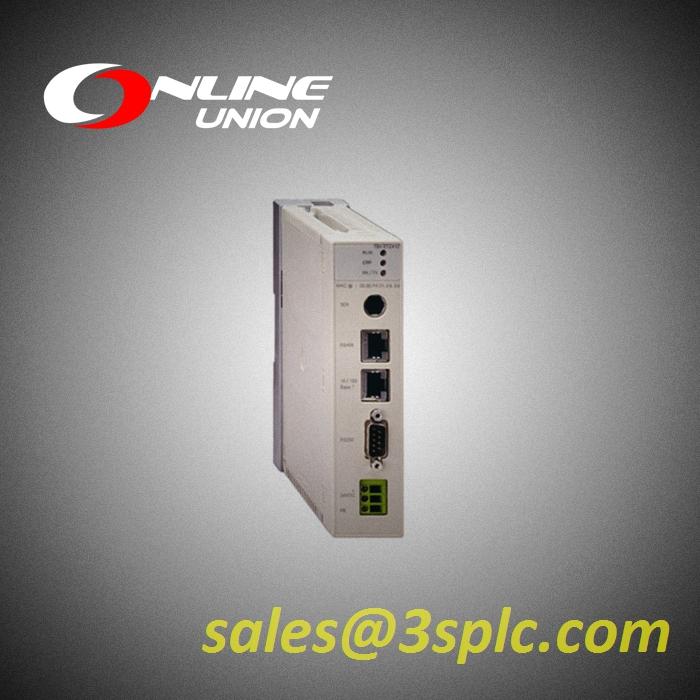

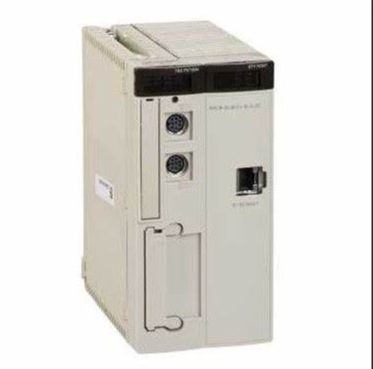

Schneider TSXP57204M Unity Processor

Schneider TSXP57204M MODICON PREMIUM UNITY PROCESSOR - 8 RACKS (12 SLOTS)/16 RACKS (4/6/8 SLOTS) - 850 MA 5 V DC

The Schneider TSXP57204M is a Unity processor, part of the Modicon Premium line from Schneider Electric. It's a powerful programmable logic controller (PLC) used for industrial automation applications.

Technical specifcations for TSXP57204M

Main

Range of Product: Modicon Premium Automation platform

Product or Component Type: Unity processor

Software Designation: Unity Pro

Complementary

Number of racks: 16 4/6/8 slots; 8 12 slots

Number of slots: 96; 128; 64

Discrete I/O processor capacity: 1024 I/O

Analogue I/O processor capacity: 80 I/O

Number of application specific channel: 24

Number of process control channel: 10 up to 30 simple loops

Integrated connection type: Non isolated serial link 2 female mini DIN RS485)19.2 kbit/s)

Communication module processor capacity: 4; 1

Memory description

InternalRAM (with PCMCIA card) 160 kB data

Internal RAM (with PCMCIA card) 768 kB program

Internal RAM (without PCMCIA card) 160 kB program and data

PCMCIA card 16384 kB additional data storage

Maximum size of object areas

64 %KWi constant words located internal data

64 %MWi internal words located internal data

64 kB (DFB and EFB function blocks) unlocated internal data

64 kB (elementary and derived data) unlocated internal data

8132 %Mi located internal bits

Application structure

1 master task

1 fast task

64 event tasks

Execution time per instruction

0.19 µs Boolean without PCMCIA card

0.25 µs word or fixed-point arithmetic without PCMCIA card

1.75...2.6 µs floating points with PCMCIA card

1.75...2.6 µs floating points without PCMCIA card

0.21 µs Boolean with PCMCIA card

0.42 µs word or fixed-point arithmetic with PCMCIA card

Number of instructions per ms

2.53 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card

3.7 Kinst/ms 100 % Boolean with PCMCIA card

3.71 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card

4.76 Kinst/ms 100 % Boolean without PCMCIA card

System overhead

0.3 ms fast task

1 ms master task

Marking: CE

Local signalling

for processor running (RUN) 1 LED (green)

for I/O module or configuration fault (I/O) 1 LED (red)

for processor or system fault (ERR) 1 LED (red)

for activity on TER or AUX terminal port (TER) 1 LED (yellow)

Current consumption: 850 mA 5 V DC

Module format: Double

Net Weight: 1.15 lb(US) (0.52 kg)

Environment

Standards

89/336/EEC

CSA C22.2 No 213 Class I Division 2 Group A

92/31/EEC

IEC 61131-2

CSA C22.2 No 213 Class I Division 2 Group B

73/23/EEC

CSA C22.2 No 213 Class I Division 2 Group C

CSA C22.2 No 142

93/68/EEC

UL 508

CSA C22.2 No 213 Class I Division 2 Group D

Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)

Ambient Air Temperature for Storage: -13…158 °F (-25…70 °C)

Relative Humidity

10…95 % without condensation for operation

5…95 % without condensation for storage

Operating altitude: 0...6561.68 ft (0...2000 m)

protective treatment: TC

IP Degree of Protection: IP20

Pollution degree: 2
