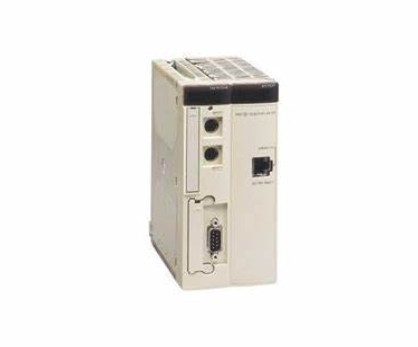

Schneider TSXP57253M Double-Format PL7 Processor

Schneider TSXP57253M MODICON PREMIUM DOUBLE-FORMAT PL7 PROCESSOR - 820 MA 5 V DC

The Schneider TSXP57253M is a double-format PL7 processor, also known as a Programmable Logic Controller, belonging to the Modicon Premium line by Schneider Electric. It's a powerful and versatile unit designed for handling complex automation tasks in various industrial settings.

Technical specifcations for TSXP57253M

Dimensions: 2.2 cm x 12.4 cm x 12.6 cm

Weight: 0.1 kg

Main

Range of Product: Modicon Premium Automation platform

Product or Component Type: Double-format PL7 processor

Software Designation: PL7 Junior/Pro

Complementary

Number of racks: 16 4/6/8 slots; 8  12 slots

Number of slots:96; 128; 64

Discrete I/O processor capacity: 1024 I/O

Analogue I/O processor capacity: 80 I/O

Number of application specific channel: 24

Number of process control channel: 10 up to 30 simple loops

Integrated connection type

Non isolated serial link 2 female mini DIN19.2 kbit/s)

Fipio manager (127 agents) SUB-D 9

Communication module processor capacity

1 fieldbus module (none if CANopen used)

1 network module

4 AS-Interface bus modules

1 CANopen

Memory description

Internal RAM (with PCMCIA card) 64 Kwords data

Internal RAM (without PCMCIA card) 64 Kwords program and data

PCMCIA card 160 Kwords program

PCMCIA card 2688 Kwords additional data storage

Maximum size of object areas

30.5 %MWi internal words located internal data

32 %KWi constant words located internal data

8132 %Mi located internal bits

Application structure

1 master task

64 event tasks

1 fast task

Execution time per instruction

0.19 µs Boolean without PCMCIA card

0.21 µs Boolean with PCMCIA card

0.25 µs word or fixed-point arithmetic without PCMCIA card

0.42 µs word or fixed-point arithmetic with PCMCIA card

2.6 µs floating points with PCMCIA card

2.6 µs floating points without PCMCIA card

Number of instructions per ms

2.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card

3.57 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card

3.7 Kinst/ms 100 % Boolean with PCMCIA card

4.76 Kinst/ms 100 % Boolean without PCMCIA card

System overhead: 0.35 ms fast task; 1.2 ms master task

Marking: CE

Local signalling

for processor running (RUN) 1 LED (green)

for activity on Fipio bus (FIP) 1 LED (red)

for I/O module or configuration fault (I/O) 1 LED (red)

for processor or system fault (ERR) 1 LED (red)

for activity on the terminal port (TER) 1 LED (yellow)

Current consumption: 820 mA 5 V DC

Module format: Double

Net Weight: 1.23 lb(US) (0.56)

Environment

Standards

CSA C22.2 No 213 Class I Division 2 Group A

CSA C22.2 No 142

IEC 61131-2

UL 508

73/23/EEC

89/336/EEC

CSA C22.2 No 213 Class I Division 2 Group C

CSA C22.2 No 213 Class I Division 2 Group B

CSA C22.2 No 213 Class I Division 2 Group D

92/31/EEC

93/68/EEC

Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)

Ambient Air Temperature for Storage: -13…158 °F (-25…70 °C)

Relative Humidity

10…95 % without condensation for operation

5…95 % without condensation for storage

Operating altitude: 0...6561.68 ft (0...2000 m)

protective treatment: TC

IP Degree of Protection: IP20

Pollution degree: 2
