Schneider TSX3721101 Base controller

Schneider TSX3721101 MODICON MICRO TSX MICRO 37 21/22 PLC CONFIGURATIONS

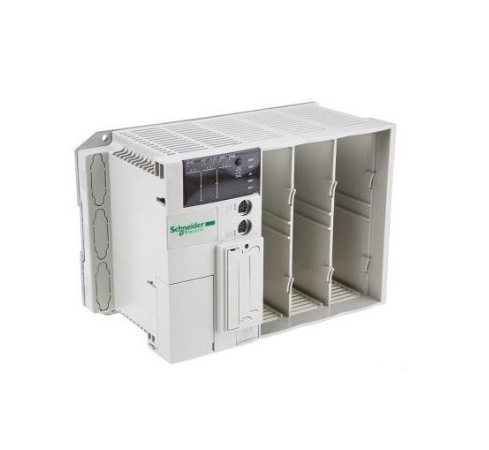

This product is part of the Modicon TSX Micro range, an offer of Programmable Logic Controllers (PLC). This modular base controller has 3 slots. It is a modular base controller with a primary voltage of 24V, 19.2V to 30V DC and 2mA 60A input current. Integrated connections are 1 serial link Uni-Telway 19.2kbps and 1 Modbus RTU 19.2kbps. Its dimensions are 341.4mm (width) x 152mm (depth) x 151mm (height) and weighs 1.72kg. It is suitable for infrastructures, machine and manufacturing control applications. The automation platform designed to enhance system's performance. With Micro's accuracy, flexibility and increased productivity, you have a real partner at the heart of the machine.

Technical specifcations for TSX3721101

Dimensions: 2.2 cm x 12.4 cm x 12.6 cm

Weight: 0.1 kg

Main

Range of Product: Modicon TSX Micro automation platform

Product or Component Type: Modular base controller

Primary voltage: 24 V 19.2…30 V DC

Input current: 2 mA 60 A

Immunity to microbreaks: 10 ms

Complementary

Number of slots: 3

Integrated connection type

1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s

1 Modbus Modbus RTU 19.2 kbit/s

Realtime clock: With

Memory description

Flash 15 Kwords data

Internal RAM 20 Kwords data

Internal RAM (with PCMCIA card) 128 Kwords program and data

Internal RAM 128 Kwords data storage

Maximum size of object areas

128 %KWi constant words

1 %MWi internal words

256 %Mi

Execution time per instruction

0.13 µs Boolean without PCMCIA card

4.5 µs arithmetic REAL floating without PCMCIA card

0.19 µs Boolean with PCMCIA card

4.5 µs arithmetic REAL floating with PCMCIA card

Execution time for 1 Kinstruction

5.88 100 % Boolean without PCMCIA card

0.27 65 % Boolean and 35 % numerical without PCMCIA card

4 100 % Boolean with PCMCIA card

0.266 65 % Boolean and 35 % numerical with PCMCIA card

Application structure: 1 fast task; 16 event tasks; 1 master task

System overhead: 1.6 ms master task

Protection Type: Short-circuit; Overload protection

Total useful secondary power: 16 W

Electromagnetic compatibility

Electrostatic discharge IEC 1000-4-2 level 3

Electromagnetic field immunity test IEC 1000-4-3 level 3

Resistance to fast transient IEC 1000-4-4 level 3

Immunity to impulse waves IEC 1000-4-5

Damped oscillatory wave IEC 1000-4-12

Immunity to electromagnetic interference IEC 61131-2

Environment

Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)

Ambient Air Temperature for Storage: -13…158 °F (-25…70 °C)

Relative Humidity: 5…95 % without condensation for operation

Operating altitude: 0...6561.68 ft (0...2000 m)

Width: 13.4 in (341.4 mm)

Height: 5.9 in (151 mm)

Depth: 6.0 in (152 mm)

Net Weight: 3.79 lb(US) (1.72 kg)
