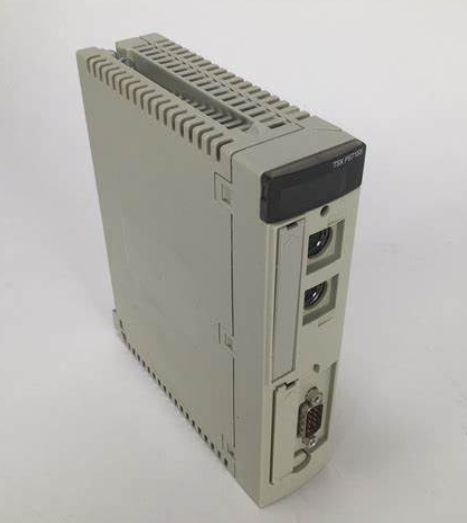

Schneider TSXP57153M Standalone processor, Modicon M580, 4MB, 61 Ethernet devices
The Schneider TSXP57153M is a single-format PL7 processor module for the Modicon Premium automation platform. It's the brain of the PLC system, responsible for executing control programs and managing communication with connected devices
Technical specifcations for TSXP57153M
Dimensions: 2.5cm*12.7cm*14cm
Weight: 0.2 kg
Main
Range of Product: Modicon Premium Automation platform
Product or Component Type: Single-format PL7 processor
Software Designation: PL7 Junior/Pro
Complementary
Number of racks:
2 12 slots; 4 4/6/8 slots
Number of slots:
24; 32; 16
Discrete I/O processor capacity: 512 I/O
Analogue I/O processor capacity: 24 I/O
Number of application specific channel: 8
Integrated connection type:
Non isolated serial link 2 female mini DIN19.2 kbit/s)
Fipio manager (63 agents) SUB-D 9
Communication module processor capacity:
1 network module
2 AS-Interface bus modules
Memory description:
Internal RAM (with PCMCIA card) 32 Kwords data
Internal RAM (without PCMCIA card) 32 Kwords program and data
PCMCIA card 128 Kwords additional data storage
PCMCIA card 64 Kwords program
Maximum size of object areas:
30.5 %MWi internal words located internal data
32 %KWi constant words located internal data
4096 %Mi located internal bits
Application structure:
1 fast task;
1 master task;
32 event tasks ;
Execution time per instruction
0.5 µs Boolean without PCMCIA card
0.6 µs Boolean with PCMCIA card
0.62 µs word or fixed-point arithmetic without PCMCIA card
0.87 µs word or fixed-point arithmetic with PCMCIA card
44 µs floating points with PCMCIA card
44 µs floating points without PCMCIA card
Number of instructions per ms
0.85 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card
1.05 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card
1.18 Kinst/ms 100 % Boolean with PCMCIA card
1.52 Kinst/ms 100 % Boolean without PCMCIA card
System overhead:
0.8 ms fast task
3.1 ms master task
Marking: CE
Local signalling:
for processor running (RUN) 1 LED (green)
for activity on Fipio bus (FIP) 1 LED (red)
for I/O module or configuration fault (I/O) 1 LED (red)
for processor or system fault (ERR) 1 LED (red)
for activity on the terminal port (TER) 1 LED (yellow)
Current consumption: 8530 mA 5 V DC
Module format: Standard
Net Weight: 0.93 lb(US) (0.42 kg)
