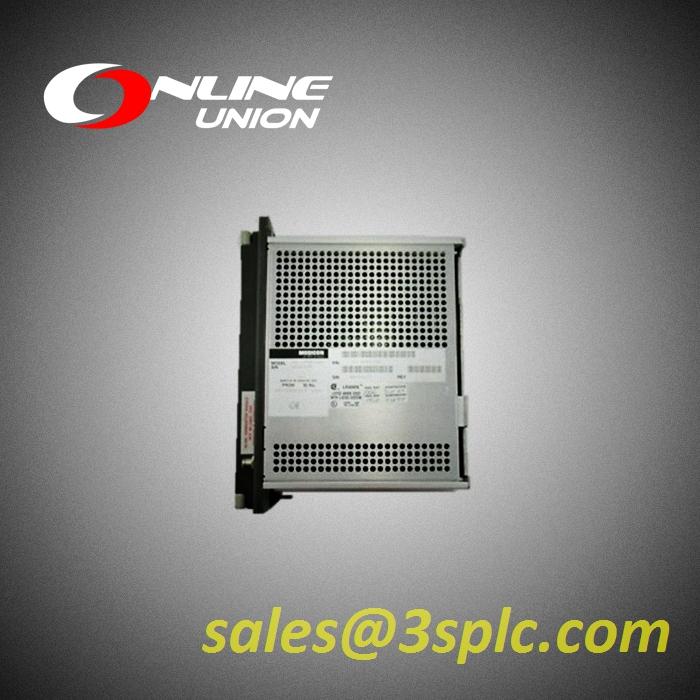

Schneider TSXETZ410 Ethernet module

Schneider TSXETZ410 Ethernet module - 10/100 Mbps 24 V DC supply

The Schneider TSXETZ410 is a communication module for the Schneider Electric Modicon TSX Micro automation platform. It essentially acts as a bridge between the PLC and other devices on an Ethernet network.

Technical specifcations for TSXETZ410

Dimensions: 3.8cm*15.2cm*12.7cm

Weight: 0.3 kg

Main

Range of Product: FactoryCast Gateway

Product or Component Type: Ethernet module

Kit composition:

Gateway module

User manual

Web Designer software (CD-ROM)

Concept: Transparent Ready

Type of modem:

Via satellite

Via radio

Via telephone line

Structure type:

Heterogeneous industrial bus Ethernet IEEE 802.3

Topology:

Star Ethernet

Tree-structure Ethernet

Transmission Rate:

10/100 Mbit/s Ethernet

56 kbit/s maximum serial link by modem

Web services:

Web pages defined by the user (8 MB available)

Access function to the PLC data and variables Data Editor

Communication diagnostics function

Graphic objects editor

PLC diagnostics system function RackViewer

Maximum simultaneous connection of 8 standard browsers

IP configuration for TSX ETZ 410/510 module via standard browser

Communication service:

1 kB client/server requests Uni-Telway

128 byte client/server requests Uni-Telway

128 byte synchronous requests Modbus

Client/server mode Modbus

Client/server mode Uni-Telway

[Us] rated supply voltage: 24 V DC

Complementary

Communication Port Protocol:

Serial link by modem

Ethernet

Physical interface: RTC link RS232 serial link by modem

Exchange mode:

Half or full duplex serial link by modem

Manchester-type baseband Ethernet

Transmission support medium:

Double shielded twisted pair of type STP 10BASE-T ETHERNET

Ethernet cable category 5 100BASE-T ETHERNET

Shielded RS232 cable serial link by modem

Maximum Number of Connected Devices:

Ethernet <64 star

Serial link by modem <2 star

Maximum cable distance between devices: 328.08 ft (100 m) between terminal device and hubs ETHERNET

Ethernet service:

Inter-PLC communication in Uni-Telway or Modbus TCP/IP

Diagnostics module

Download of Uni-Telway PL7 applications

Remote terminal

Scanned inputs/outputs service performed

Adjustment, debugging and modifications to the program

Supply voltage limits: 19.2…30 V DC

Input overvoltage protection: 34 V

Power dissipation in W: 2.4…4 W

Electrical connection:

1 connector mini DIN for terminal port (TER address)

1 connector RJ45 for Uni-Telway auxiliary port RS485 serial

1 connector SUB-D 9 for RS232 serial link (Modem)

1 connector RJ45

Screw terminal block for connecting to the external power supply

Local signalling:

for RUN 1 LED

for ERR 1 LED

for RX/TX 1 LED

Current consumption:

100 mA 24 V DC

50...200 mA 24 V DC

Mounting Support: Mounting plate

Width: 1.57 in (39.83 mm)

Height: 6.0 in (151.5 mm)

Depth: 4.6 in (116.7 mm)

Net Weight: 0.62 lb(US) (0.28 kg)
